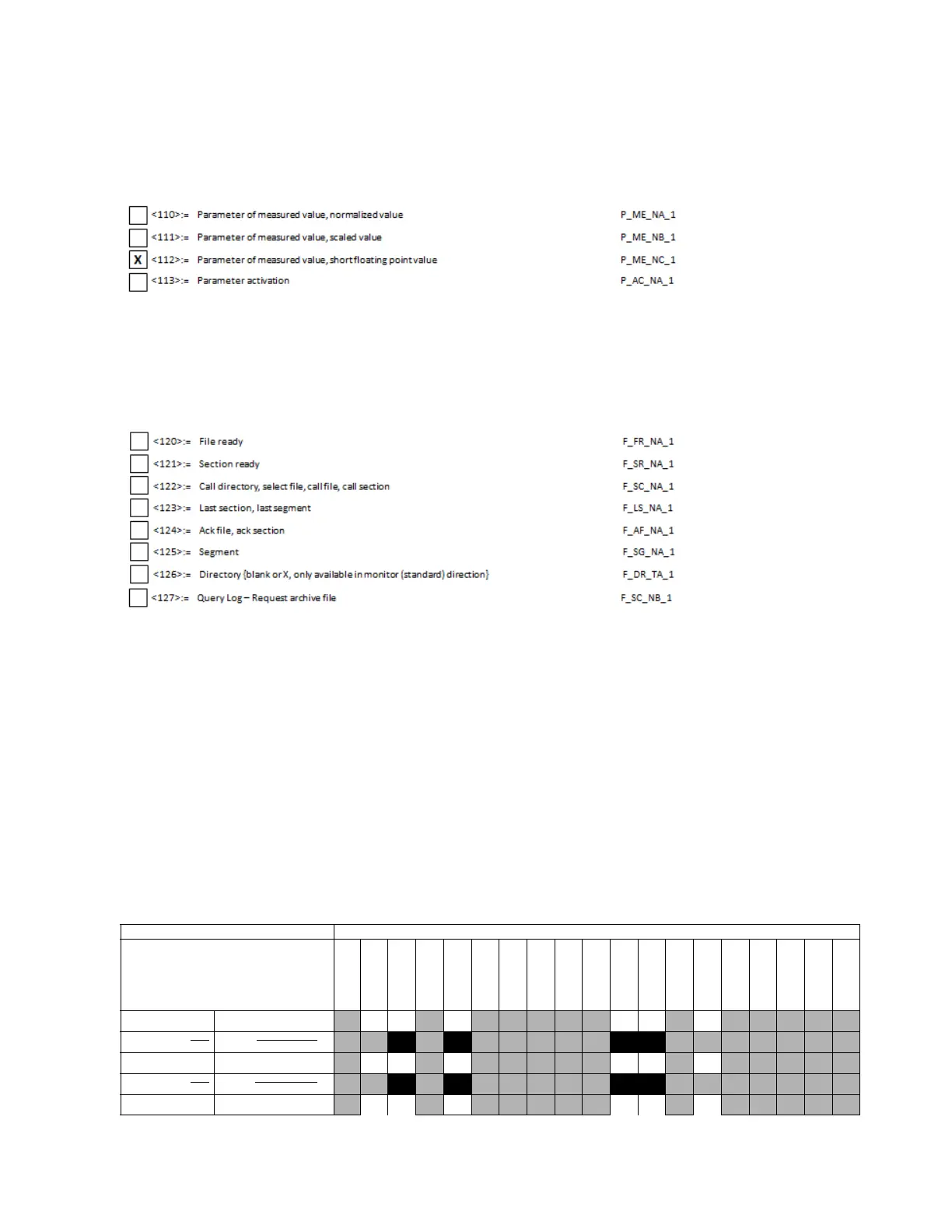

APPENDIX D: IEC 60870-5-104 PROTOCOL D.6 IEC 60870-5-104 INTEROPERABILITY
GEK-106310-AF F650 DIGITAL BAY CONTROLLER d-17
Parameter in control direction
(station-specific parameter, mark each Type ID "X" if it is only used in the standard direction, "R" if only used in
the reverse direction, and "B" if used in both directions).
File transfer
(station-specific parameter, mark each Type ID "X" if it is only used in the standard direction, "R" if only used in
the reverse direction, and "B" if used in both directions).
Type identifier and cause of transmission assignments
(station-specific parameters)
Shaded boxes: option not required.
Black boxes: option not permitted in this companion standard
Blank: functions or ASDU not used.
Mark Type Identification/Cause of transmission combinations:
"X" if only used in the standard direction;
"R" if only used in the reverse direction;
"B" if used in both directions.
Type identification
Cause of transmission
1 2 3 4 5 6 7 8 9 10 11 12 13 20
to
36
37
to
41
44 45 46
47
<1> M_SP_NA_1
X X
<2> M_SP_TA_1
<3> M_DP_NA_1
X X
<4> M_DP_TA_1
<5> M_ST_NA_1
