IBM Storwize V7000 Unified Problem Determination Guide

About this task

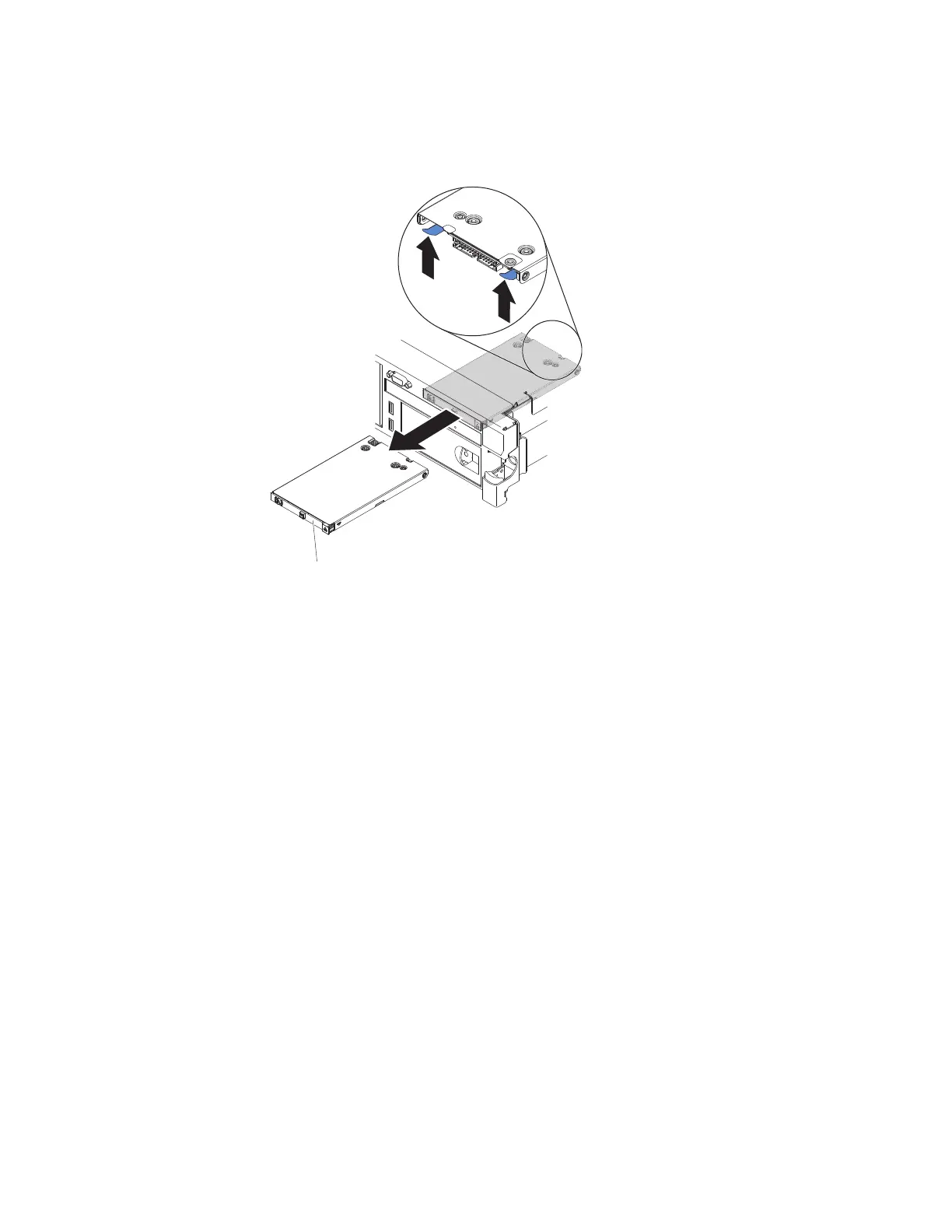

To remove the operator information panel assembly, complete the following steps.
Operator information
panel
Procedure
1. Read the Safety information and “Installation guidelines” on page 94.
2. Follow the procedure in “Removing a file module and disconnecting power” on
page 92 to suspend the file module from the cluster and shut it down, and then
disconnect all power cords and external cables.
3. Remove the cover (see “Removing the cover” on page 123).
4. Disconnect the cable from the back of the operator information panel assembly.
5. Reach inside the file module and press the release tab; then, while you hold the
release tab down, push the assembly toward the front of the file module.
6. From the front of the file module, carefully pull the operator information panel
assembly out of the file module.
7. If you are instructed to return the operator information panel assembly, follow
all packaging instructions, and use any packaging materials for shipping that
are supplied to you.
Installing the operator information panel assembly
The following procedure is for a Tier 1 customer replaceable unit (CRU).
Replacement of Tier 1 CRUs is your responsibility. If IBM installs a Tier 1 CRU at
your request, you will be charged for the installation. Service agreements can be
purchased so that you can ask IBM to replace these units.
About this task
To install the replacement operator information panel assembly, complete the
following steps.
Chapter 4. File module 163

IBM Storwize V7000 Unified Specifications

General

Model	IBM Storwize V7000 Unified
Storage Type	Unified Storage
RAID Levels	RAID 0, 1, 5, 6, 10
Form Factor	2U
Drive Types Supported	SAS, SSD
Maximum Drives	504
Network Protocols	iSCSI, FC, FCoE
Drive Bays	24 per enclosure
Host Interface	8 Gb FC, 1 Gb/10 Gb iSCSI
File Protocols	NFS, CIFS
Block Protocols	iSCSI, Fibre Channel
Type	Unified Storage
Maximum Host Ports	16
Operating System Support	VMware, Microsoft Windows, Linux, AIX
Data Services	Thin provisioning, replication
Power Supply	Redundant power supplies
Host Interfaces	8 Gbps Fibre Channel, 10 Gbps iSCSI, 1 Gbps iSCSI
