Leibinger JET3 up - Figure 59 Error Config

Page 150 Job Editor Group 8
Release R1.06 JET3up

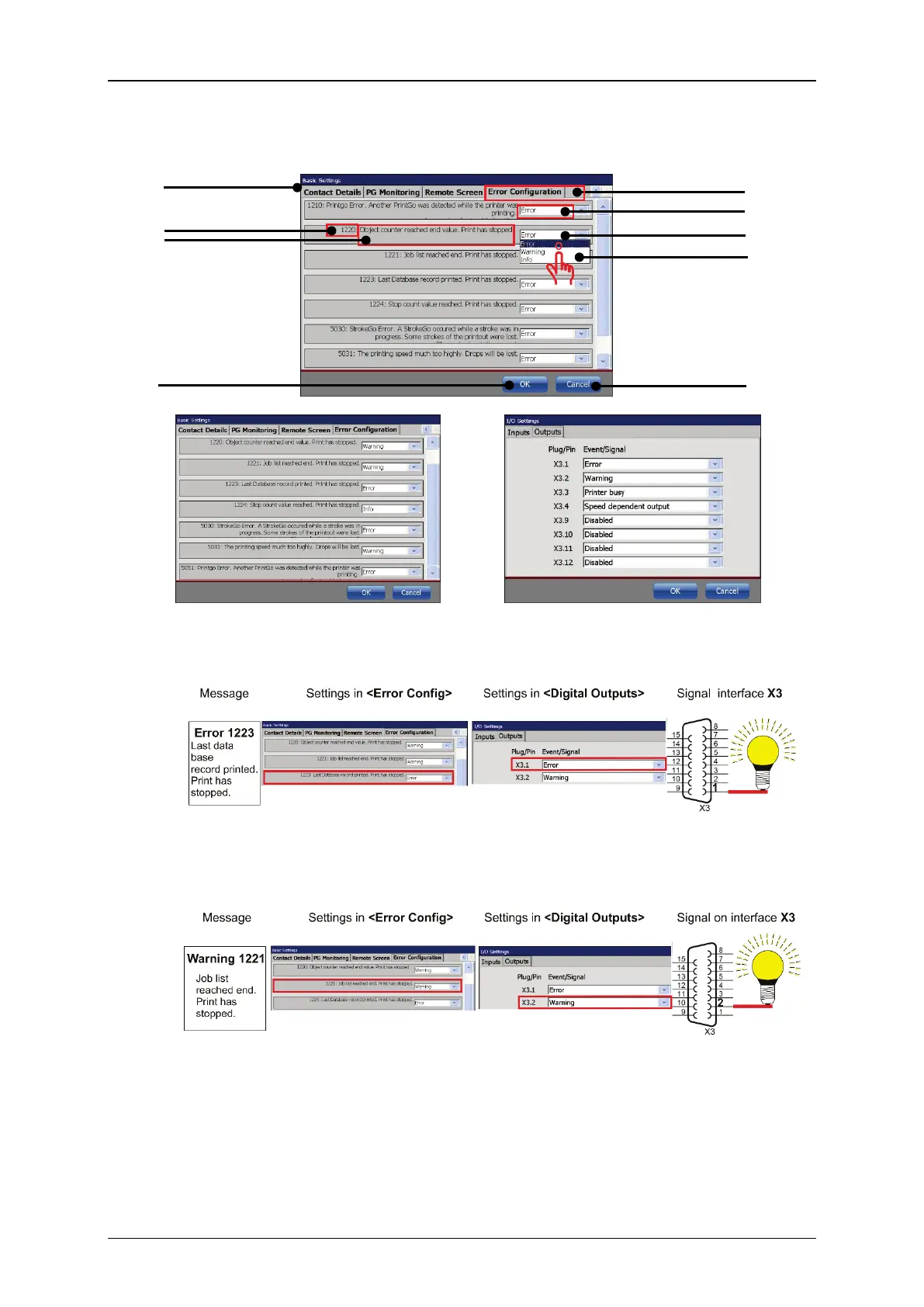

Figure 59 Error config
Example settings on the
<Error Config> tab.
Example settings on the <Outputs>
tab of the <I/O settings> dialog box.
Example Error Message
Example for a error message: After the last record of a data base was printed
the error message with code 1223 pops up and the digital output X3.1
switches.
Example Warning Message
Example for a warning message: After the end of a job list is reached the error
message with code 1221 pops up and the digital output X3.2 switches.
1 – Dialog box <Basic Settings>
6 – Drop-down list message options
2 – Tab <Error Config>
7 – Select option
3 – Message code
8 – <OK> button
4 – Message content
9 – <Cancel> button
5 – Default setting <Error>
10 – Examples
1
2
4
6
5
3
7
8
9
10
10
10
10
