5.5.6 Interface X2 - Serial interface
The interface “X2” is a serial data interface with a transfer rate up to 115200
Baud. The access is suitable for a connection to the printer to application-
specific
software for the data management and for the remote control of the printer.

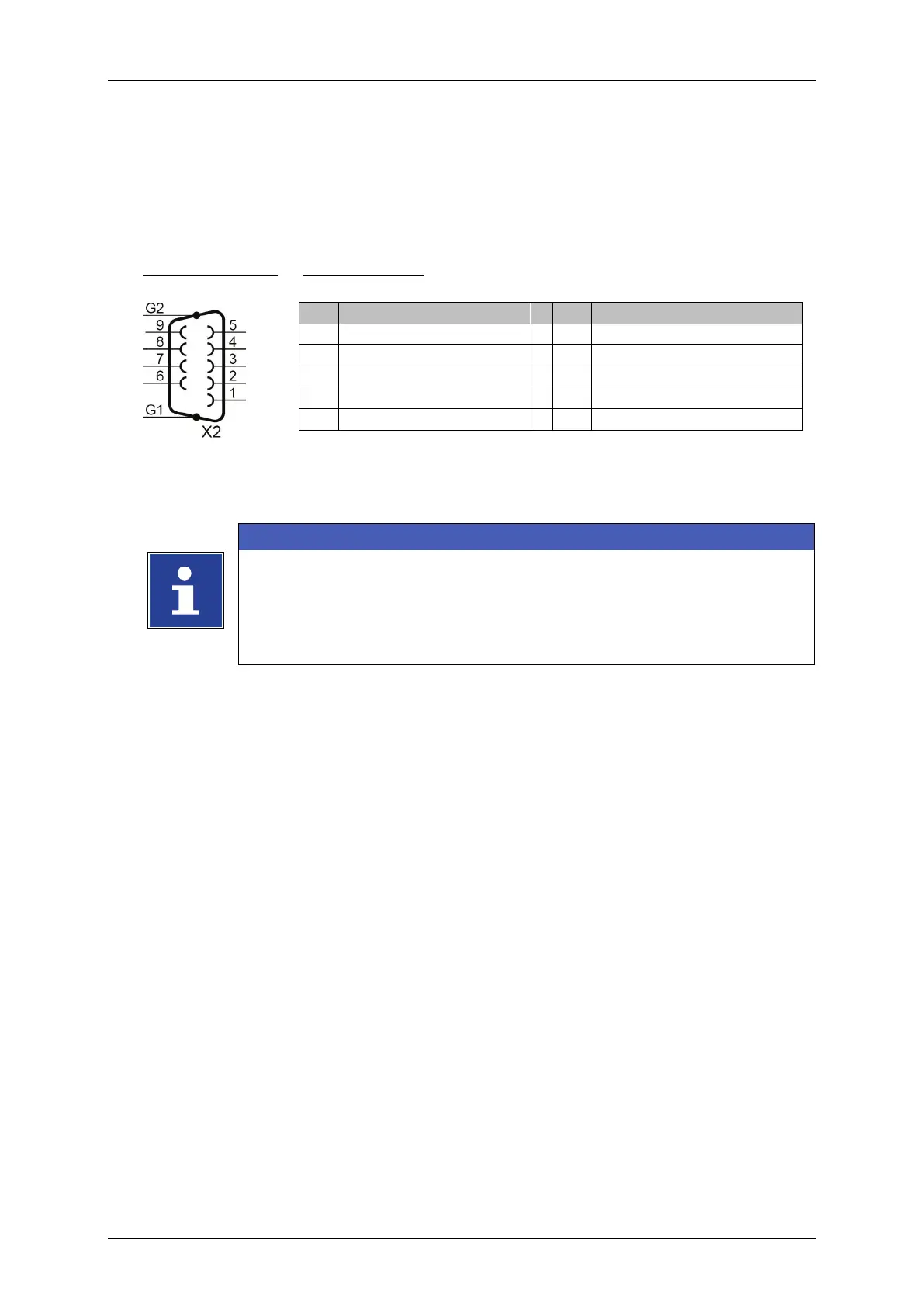

Plug assignment:
Pin connection:
INFORMATION
The function allocations of the outputs is carried out with the
software of the JET3up in the menu
Settings

I/O-Settings

Outputs.
You will find a circuit diagram of the interface in the manual
appendix!
Pin Designation Pin Designation
1
NC
6
Connected with 4
2
RxD
7
RTS
3
TxD
8
CTS
4
Connected with 6
9
NC
5
GND
NC = not connected
