Leibinger JET3 up - Figure 6 - Grounding Scematic and Grounding Point

Page 44 Transport/Start up Group 5
Release R1.06 JET3up
INFORMATION
Please note, that the grounding point (6) is hidden behind the round
grounding-symbol-label (7) on the lower left hand side of the cabinet
of the printer.

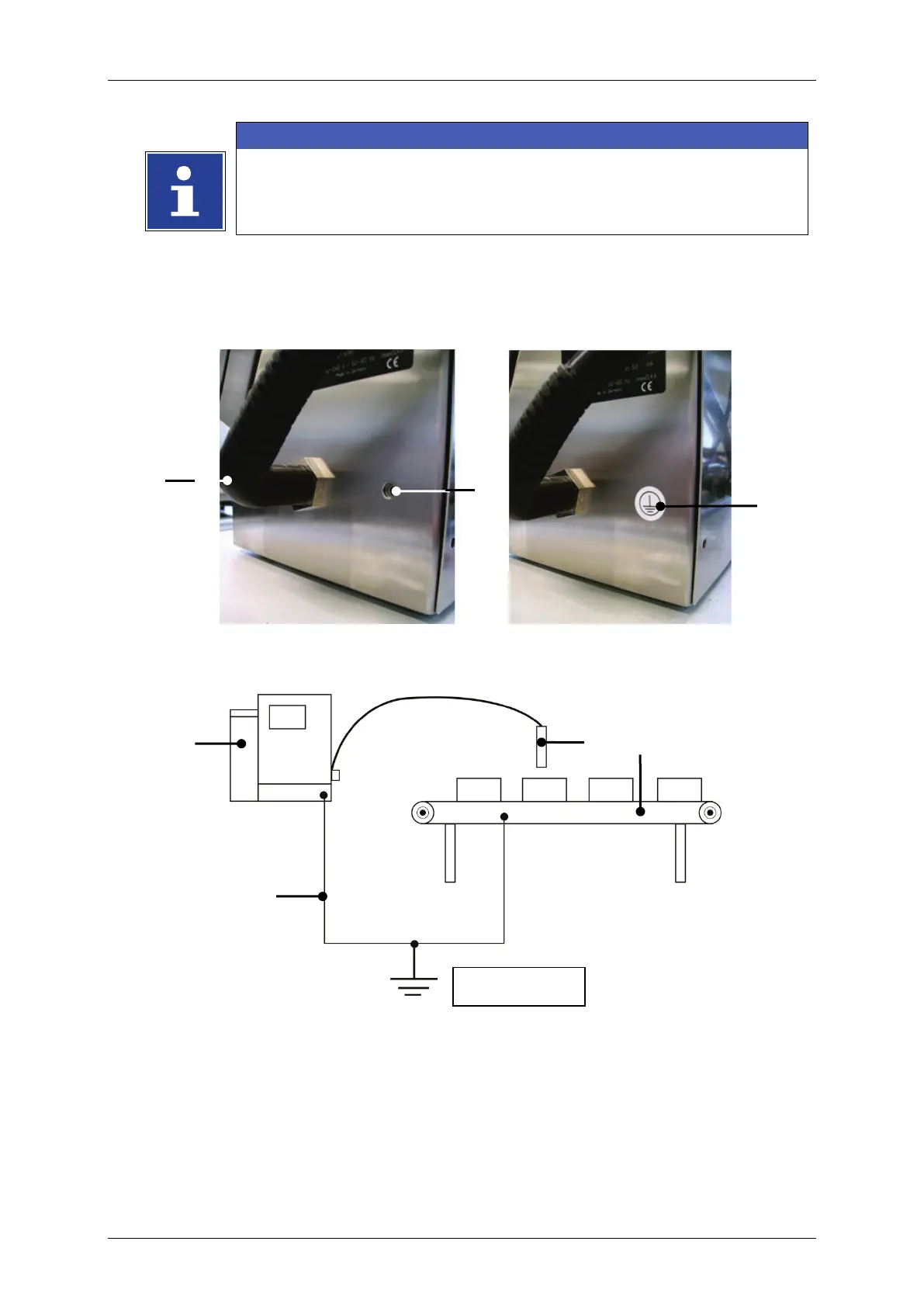

Figure 6 Grounding scematic and grounding point
Grounding schematic
1 – Printer cabinet
4 – Grounding line
7 – Grounding symbol-label
2 – Installation
5 – Umbilical
3 – Print head
6 – Grounding point (M6)
5
7
6
4
1
3
2
Ground/earth
