4 Technical data
4.1 Dimensions, weights, connections
Cabinet :
Stainless steel
Width 486 mm, depth 286 mm, height 446 mm
Weight: 20,5 kg
Print head:
Stainless steel cabinet
Print head SK6: Length (total) 212 mm, diameter 43 mm,
Option Print head SK4 : Length (total) 265 mm, diameter 43 mm,
Length of the print head lead 3 m, as option 6 and 10 m available
Weight: 1,5 kg
Any fitting position, also for overhead conveyor applications

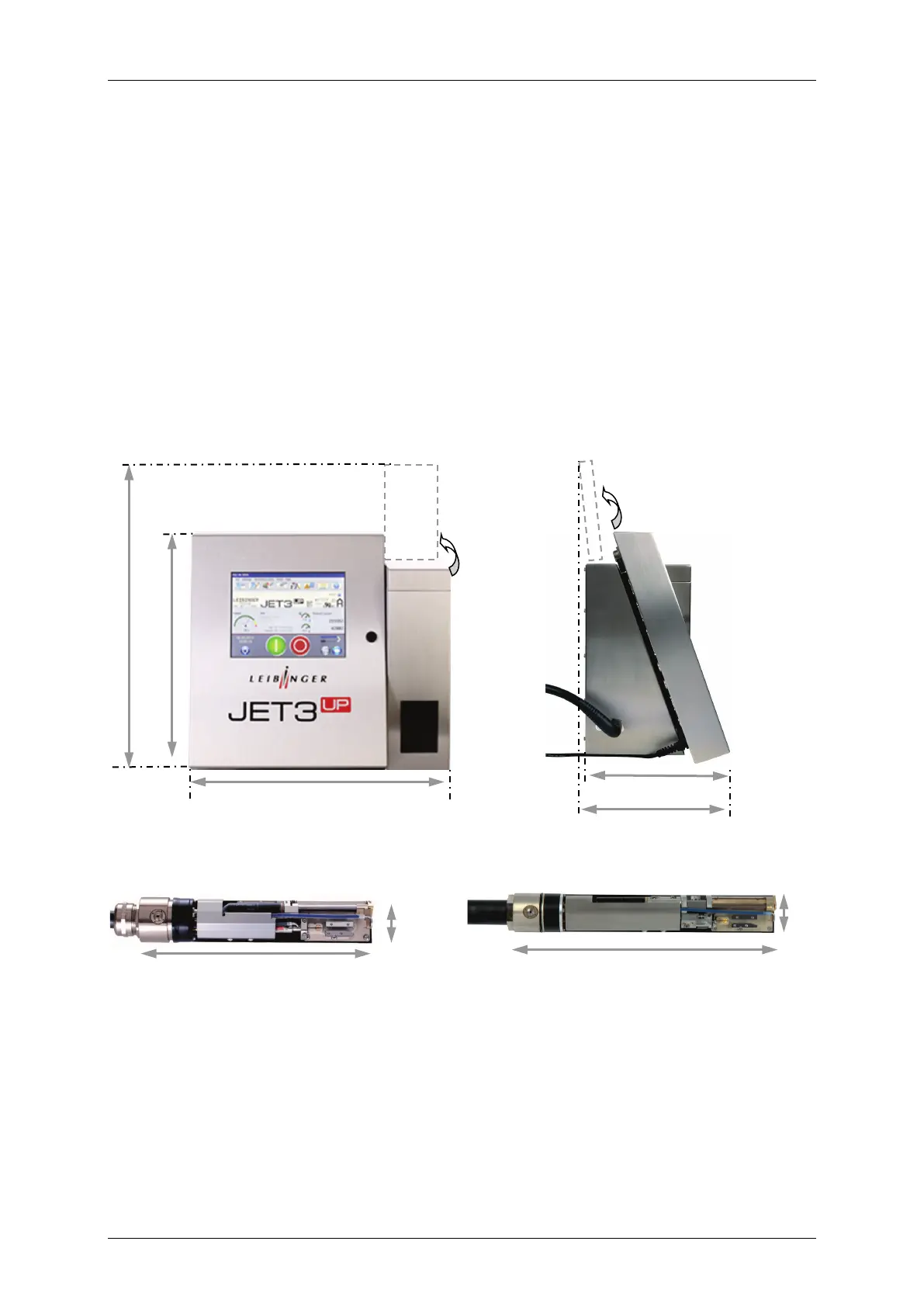

Figure 3 Dimensions
Print head SK6 Print head SK4 - Option
Protection class:
IP 54 (as option: IP 65)
∅ 43 mm
286 mm
565 mm
446 mm
486 mm
344 mm
212 mm
∅ 43 mm
265 mm
