Leibinger JET3 up - Figure 19 Indicator for General Status Information

Group 8 Job Editor Page 75
JET3up Release R1.06

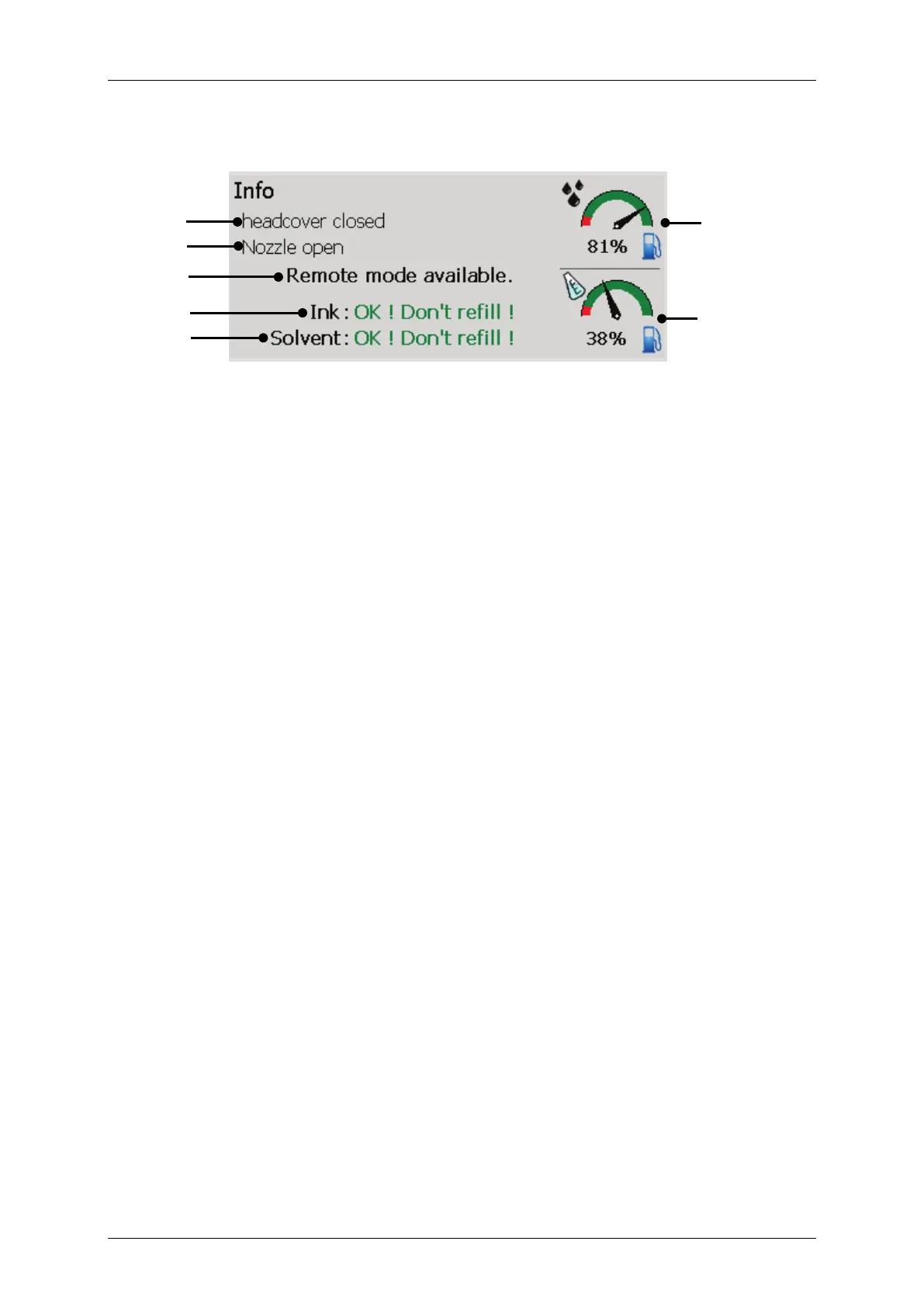

Figure 19 Indicator for general status information
1 – Current Status headcover
5 – Solvent refill information
2 – Current status of printing process
6 – Ink filling level
3 – Status of VNC server
7 – Solvent filling level
4 – Ink refill information
Status headcover:
The headcover can have two states: open or closed.
With an open headcover printing is not possible.
Current status of printing process:
The current status relevant for the printing process is displayed.
E.g.: ink on, Nozzle closed, Nozzle open, Print stop, Print start, Print busy etc.
Status of VNC server:
There are two possible states: either the VNC server is running and <Remote mode
available> is displayed or the VNC serve has stopped and nothing is displayed.
Ink refill information:
Refills are not allowed until the printer shows an according message!
Solvent refill information:
Refills are not allowed until the printer shows an according message!
Ink filling level:
The indicator shows the current ink filling level.
1
2
3
4
5
7
6
