8.5.3 Encoder parameter
The printout of the LEIBINGER JET3up up is composed of single dots printed in
groups of vertical lines. Such a vertical line of dots is called stroke. In order to
position these strokes a StrokeGo signal is required. The StrokeGo signal determins
at which position a stroke is printed.
Explanation:
A stroke is a complete dot line in
vertical direction (dot height).
The StrokeGo signals can be generated by an external encoder or based on time
measurments via
2 sensor signals. Alternatively the StrokeGo signals can be
generated internally by software. If the internal <StrokeGo-source>
is selected
additionally the printing speed has to be defined.
The settings and parameters for all three methods are entered on the <Encoder
Parameter> tab.
The following parameters and settings are available:

Selection of encoder signal source

Resolution
 Rotating direction  Internal speed
 Use encoder direction for mirroring  Speed dependent output
 Lock backward on/off  Sensor distance

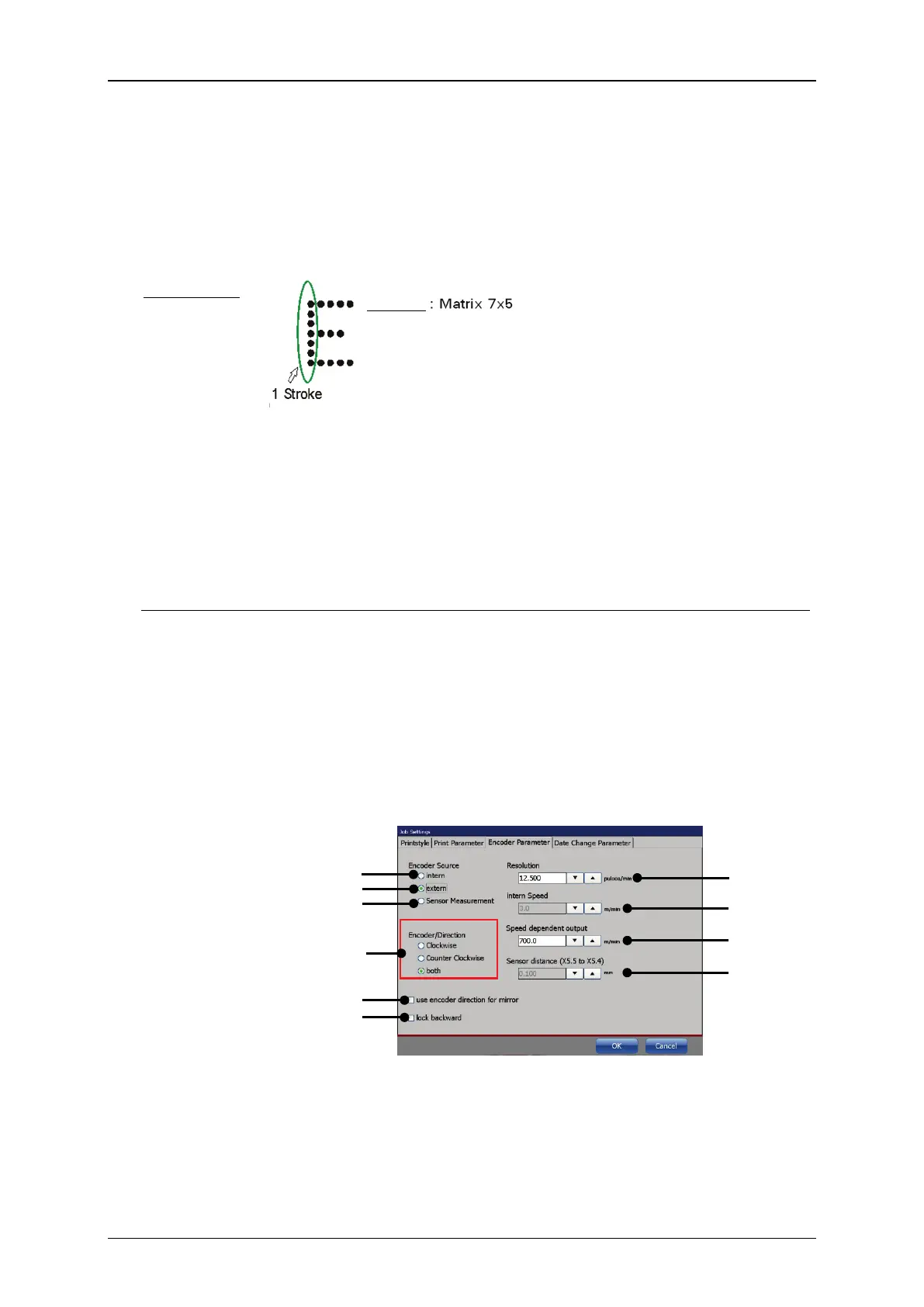

Figure 154 Encoder parameter tab
1 – Check box <Encoder source int.>
6 – Check box <lock backward>
2 – Check box <Encoder source ext.>
7 – Input field <Resolution>
3 – Check box <Sensor Measurement>
8 – Input field <Internal speed>
4 – Check boxes <Encoder/Direction>
9 – Setting for <Speed dep. output>
5 – Checkbox <Encoder dir. f. mirror>
10 – Setting for <Sensor distance>
Example:
2
8
9
5
7
3
6
4
1
10
