Group 5 Transport/Start up Page 57
JET3up Release R1.06
5.4.4 Setting of the external print head ventilation -optional equipment
If the high performance printer is equipped with a printhead ventilation system (option)
the seeting of the pressure has to be adjusted befor commissioning the printer.
Proceeding
Turn the adjusting knob (2) of the pressure regulator valve (1), until the
necessary
pressure of 1.4 bar is reached.

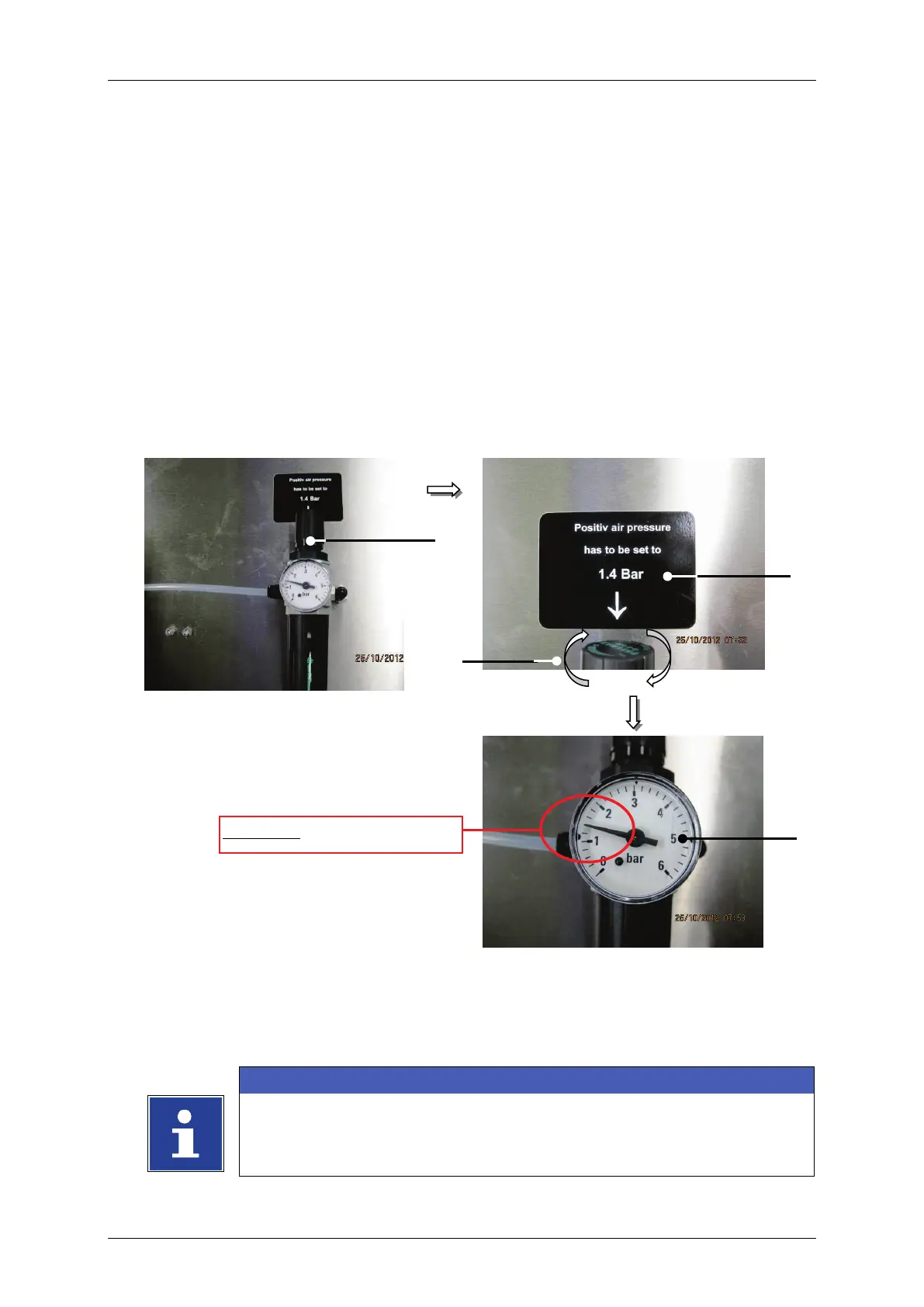

Figure 12 Setting the pressure regulator
Setting the pressure regulator (external head ventilation)
1 – Pressure regulator valve
3 – Indicating label
2 – Adjusting knob
4 – Manometer
INFORMATION
Supplementary information for the assembly and function can be
found in the chapter
6.7.1 External head print ventilation - assembly and function
4
3
Set point: 1.4 bar
1
2
