 <Remaining printouts> indicator (8): This indicator shows the remaining print outs
calculated on the basis of the current ink volume and the currently loaded print job.
The value displayed is only a rough estimate.
 <Product counter> indicator (9): The indicator displays the current value of the
product counter(s). Additionally a predefined print stop will be indicated by a red
frame. The indicator works also as button. A click on the indicator will open the
<Counter settings> dialog box. Whether there are displayed 1 or 2 product
counters depend on the product counter settings.
INFORMATION
You will find further information also in the chapter 7.5.2 Product
counter
 <Nozzle> indicator (10): This indicator shows the current status (position) of the
nozzle. There are 4 possible states:

Opening nozzle

Nozzle open
 Closing nozzle  Nozzle closed
 <Open/Close Nozzle> buttons (11): With these buttons the nozzle can be opened
and closed. The active button changes its color.

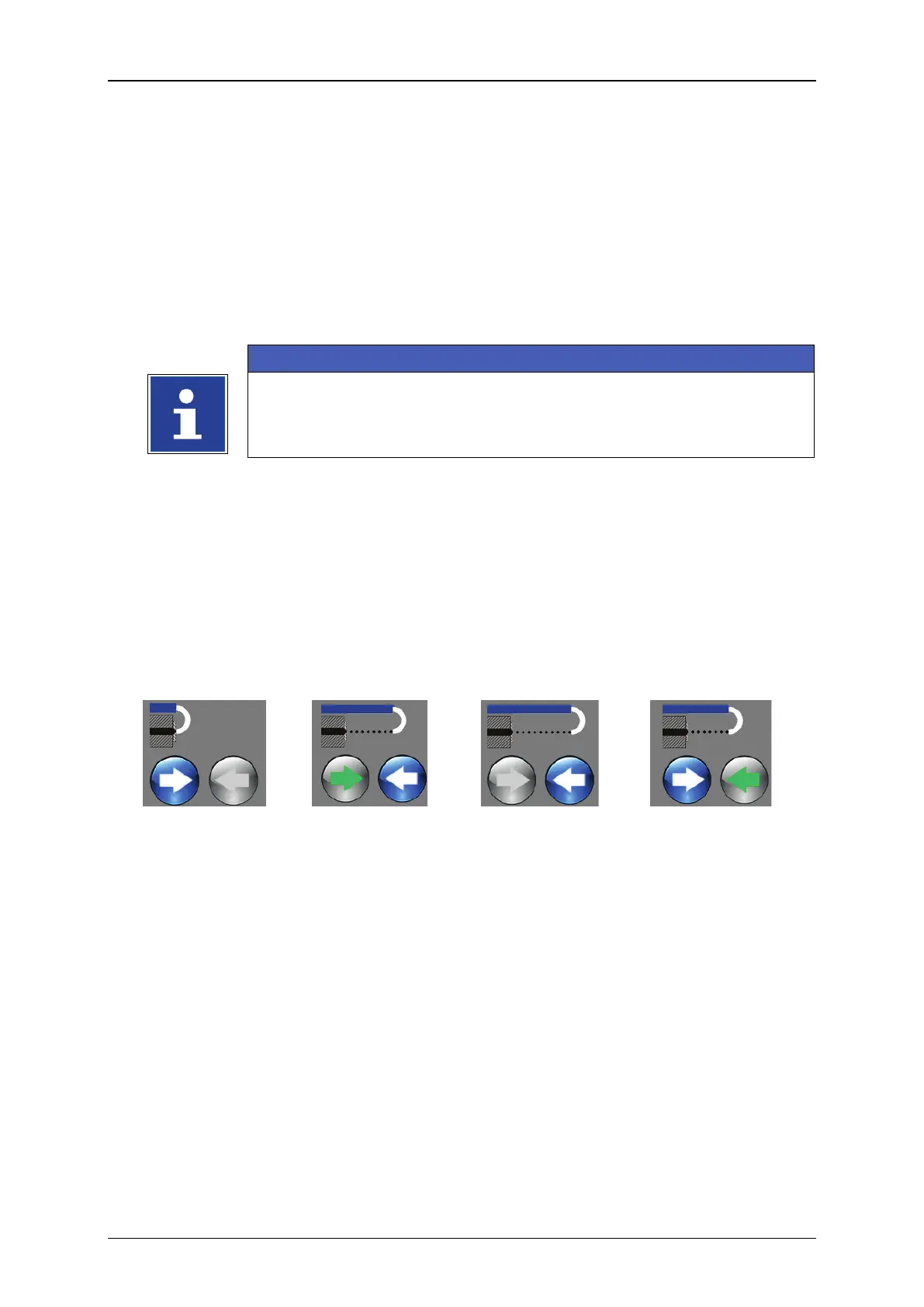

Figure 18 Status field <Nozzle>
<Close nozzle>
<Opening nozzle>
<Opened nozzle>
<Closing nozzle>
 Indicator for general status information (12):
This indicator provides general information about the current status of the printer.
