5.5.3 Interface X1 - Encoder
5.5.3.1 Description and configuration
The interface X1 provides the connection of a shaft encoder.
Due to the input for which you can set the software individually, the encoders can
be connected according to different norms without an additional converter.
Note:
For variable product speed you have to use a shaft encoder to synchronize
the printing speed or to control the constant font width.

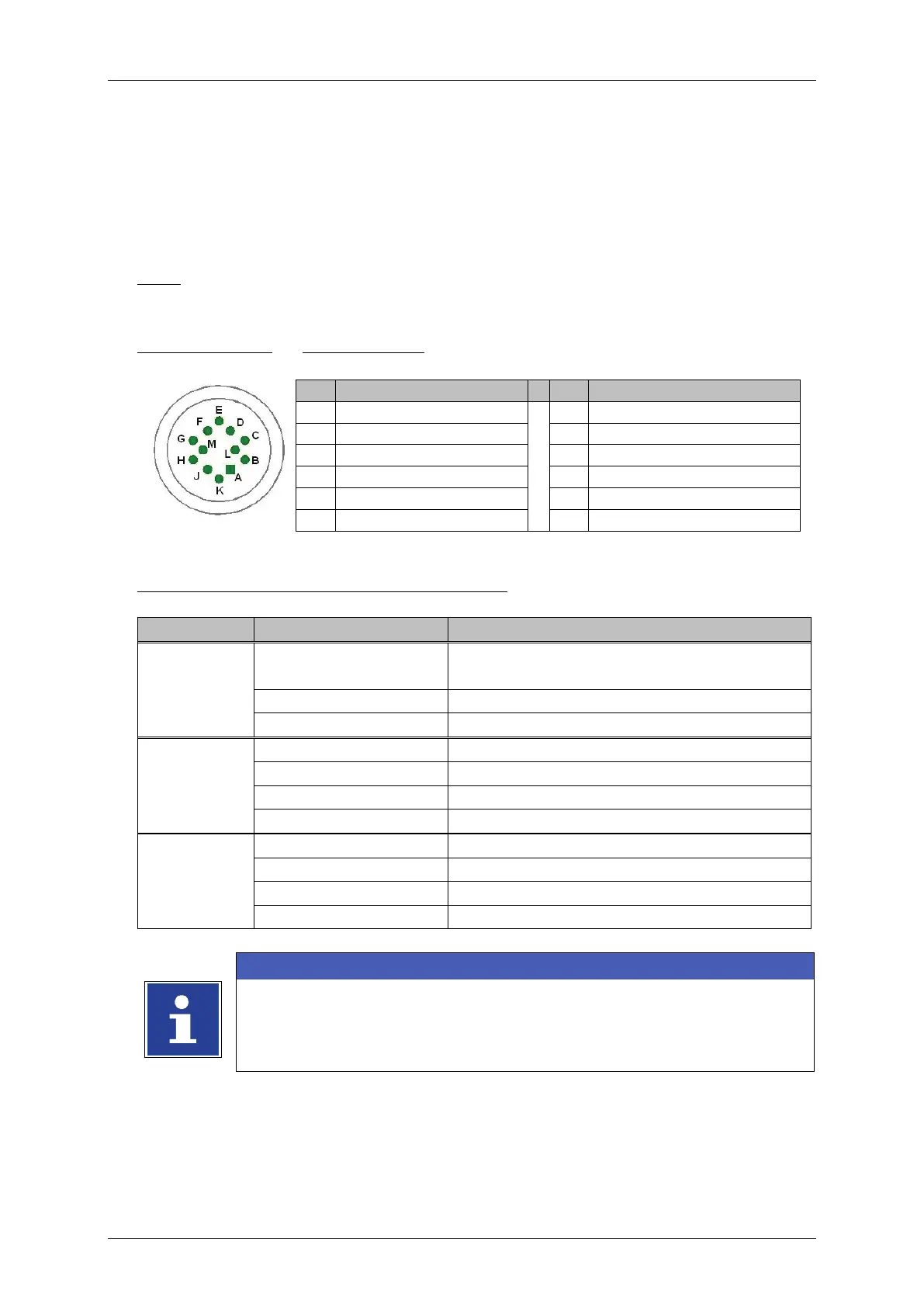

Plug assignment:
Pin connection:
Basic data /Recommended working conditions:
Signal type
Parameter
Value
RS422
Input level
Difference input ≥ +/-200mV
Input voltage range: -0,3 bis 5,5V
Max. frequency
10 MHz
Terminating resistor
100 Ohm
TTL
Input level High
2,4V up to 5,5V
Input level Low
-0,5V up to 0,7V
Max. frequency
500 kHz
Input resistance
1 MOhm
HTL
Input level High
12 up to 28V
Input level Low
-0,5 up to 3,5V
Max. frequency
500 kHz
Input resistance
4 kOhm
INFORMATION
The signal type which should be used as encoder source has to be set
in the software of the JET3up under Settings

Basic Settings

Encoder Interface.
You will find a circuit diagram of the interface in the manual appendix!
(1)
All 24V power supply outputs on X1, X3, X4 and X5 are distributed over a common
resettable fuse with 700mA max. current.
Please ensure that the sum of current are not exceed 700 mA.
Pin
Designation
Pin
Designation
A +5 V (max. 400 mA) G Encoder port /B RS422
B
GND
H
Encoder port A TTL (5V)
C
+24 V
(1)
J
Encoder port B TTL (5V)
D
Encoder_port A RS422
K
Encoder port A HTL (24V)
E
Encoder port /A RS422
L
Encoder port B HTL (24V)
F
Encoder port B RS422
M
PowerOn Option
