Leibinger JET3 up - Figure 4 - Movable Underframe (Device Support); Figure 5 - Unit Fastening Possibilities

Page 42 Transport/Start up Group 5
Release R1.06 JET3up

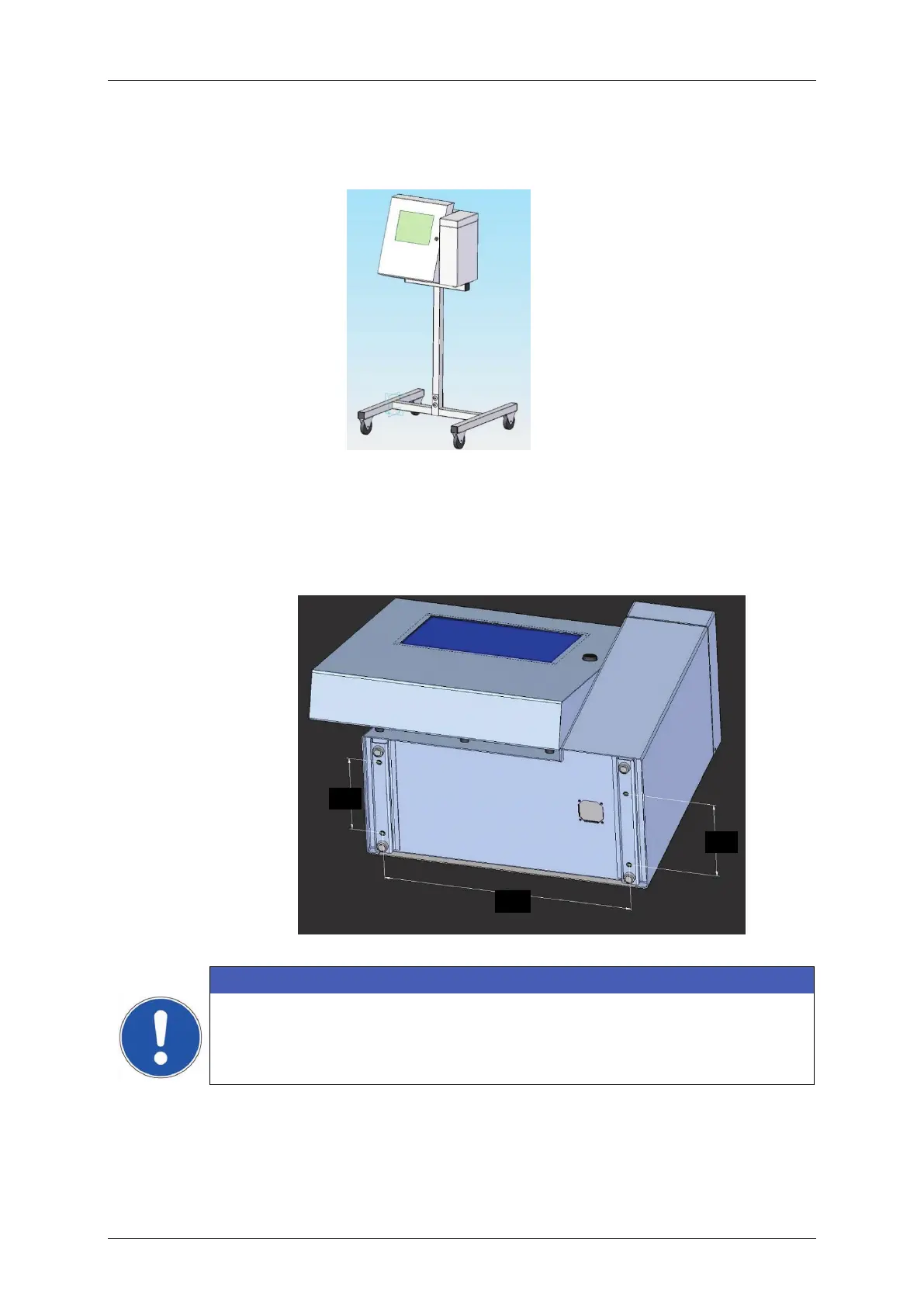

Figure 4 Movable base frame for JET3up
For this it is expedient to place the device on a device support.
The device has four fastening possibilities for secure seting up and should be screw
connected at the place of setting up.
Figure 5 Fastening posibilities
ATTENTION
A place of setting up with sufficient load bearing capacity and stability
must be chosen. Prior to assembly the place of setting up must be
cleaned of dirt and contamination (residue of lubricants etc.).
120
120
355
