ATTENTION

Make sure that there is a permanent compressed air supply!
 The printer doesn’t monitor the permanent compressed air supply!

There will be no warning in case the permanent compressed air
supply fails!
 Operation is only permissible with dry, oil-free and filtered
compressed air (Filtering 8 µm) The use of otherwise prepared
compressed air can lead to damage and malfunctions!
5.5 Interfaces
The following interfaces are available on the rear side of the electronics cabinet.

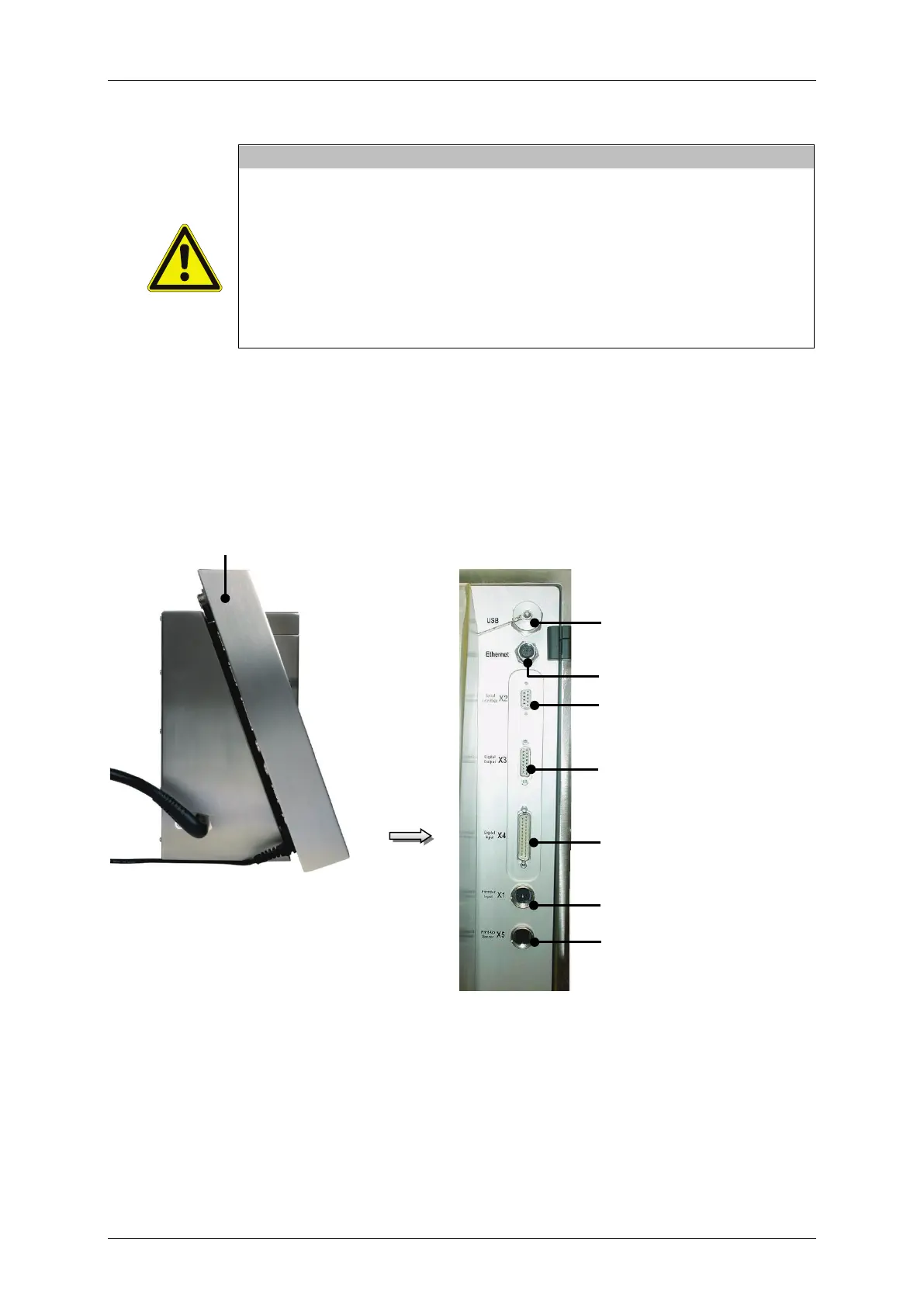

Figure 13 Interfaces
Interfaces
1 – Electronic cabinet
5 – Interface X3 – digital outputs
2 – Interface X5 – PrintGo
6 – Interface X2 – Serial Interface
3 – Interface X1 – Encoder
7 – Ethernet-connection
4 – Interface X4 – digital inputs
8 – USB connection
