5.5.5 Interface X3 - Digital outputs
8 outputs which can be freely selected are available for special functions. The
outputs 1-3 are predefined as a standard and should be not changed.
 Output 1 = Print stop error  Output 3 = Ready to print
 Output 2 = Refill warning

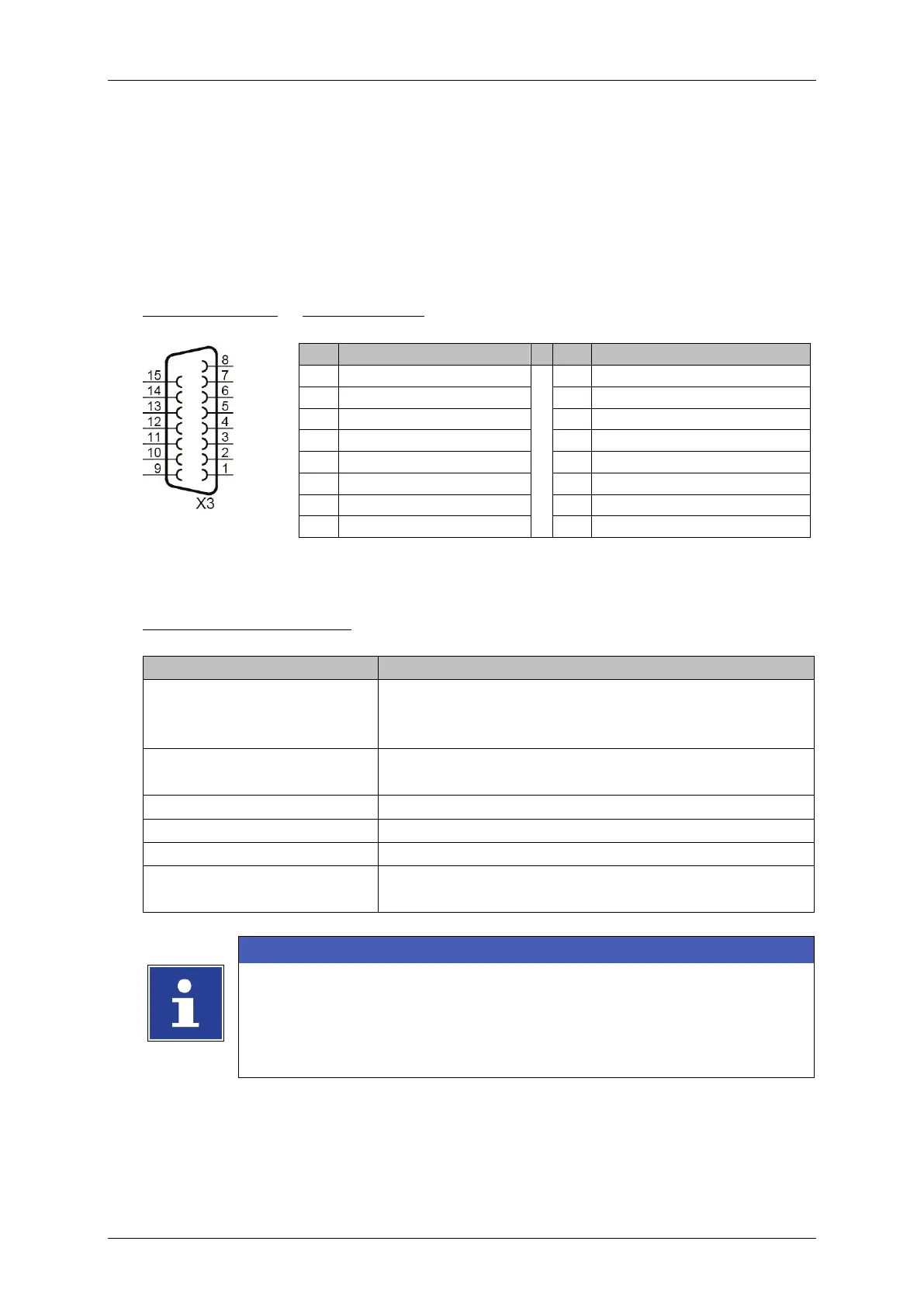

Plug assignment:
Pin connection:
Specifications Output 1-8:
Parameter
Value
Driver type 24V high side driver
ON = +24V
OFF = high resistance
Output current
max. 700mA/output
max. 700 mA totally
(1)
Max. switching frequency
2 kHz
(2)
Max. delay time
100µs
Turn on resistance max. 0,28 Ohm
Features

Short-circuit-proof
 Overcurrent- and excess temperature –proof
INFORMATION
The function allocations of the outputs is carried out with the
software of the JET3up in the menu
Settings

I/O-Settings

Outputs.
You will find a circuit diagram of the interface in the manual
appendix!
(1)
All 24V outputs which are designated with (1) are protected by a self-reset fuse with 700mA,
that means the sum of all output currents which are supplied of this 24V should not exceed
700mA.
(2)
Depending on the set function.
Pin
Designation
Pin
Designation
1
Output 1
9
Output 5
2
Output 2
10
Output 6
3
Output 3
11
Output 7
4
Output 4
12
Output 8
5 +24V
(1)
13 IP65 fail
6 Mirror (JETMotion) 14 Reserved
7
Reserved
15
GND
8
GND
Reserved = Do not connect
