Group 8 Job Editor Page 279
JET3up Release R1.06

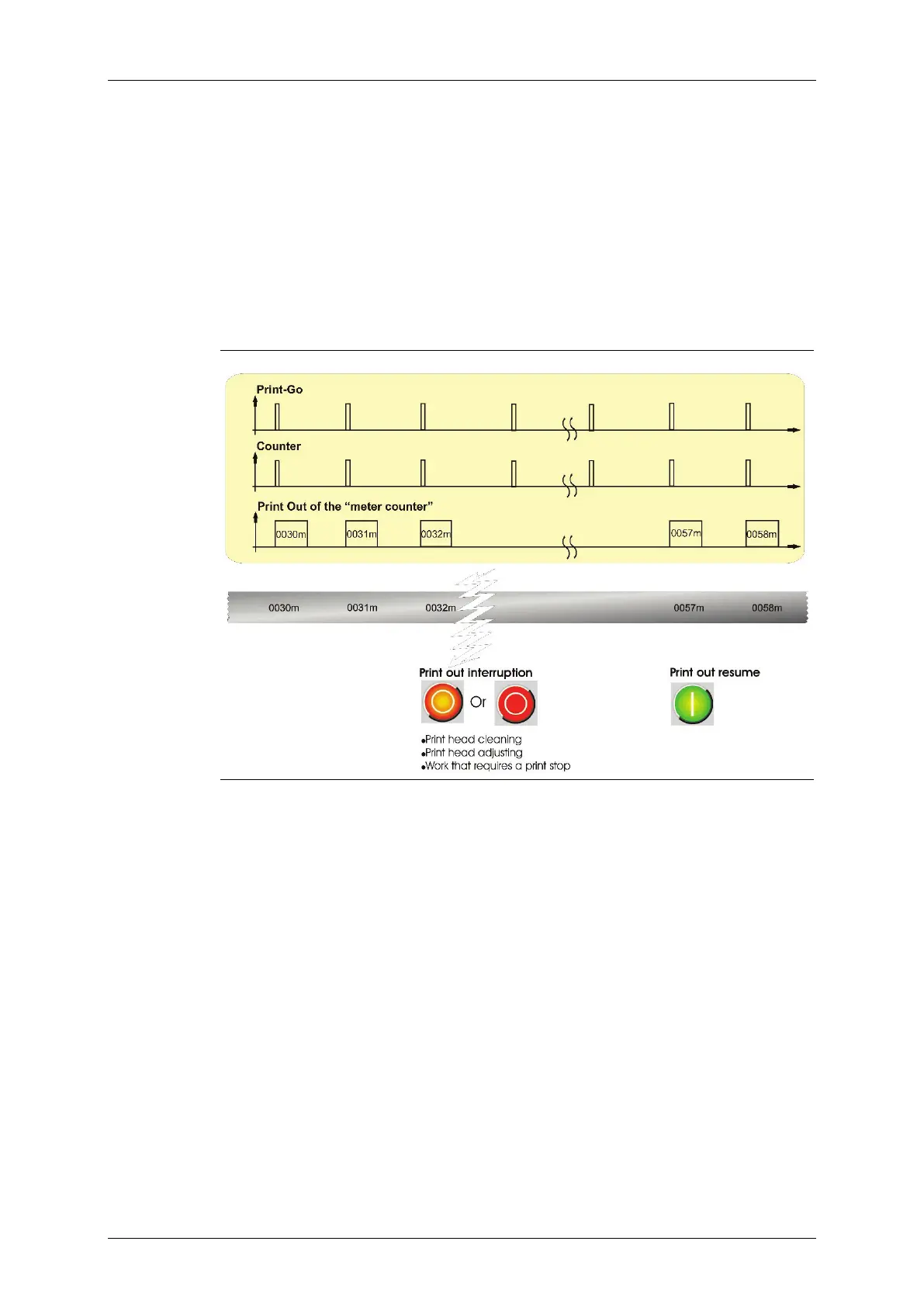

Picture 15 shows the function diagram of the example.
After 32 meters the printout stops for e.g. print head cleaning.
Nevertheless the JET3up is still receiving PrintGo signals. Because of the
<Counter Increment> setting with PrintGo (see picture 3) these signals
can be used to keep the counter updated.
Therfore the counter always has the current meter number no matter
whether there are printouts
or not. So after the work on the print head
the printout can be resumed with the correct meter number.
Picture 15 – Example function diagram
