Group 8 Job Editor Page 289
JET3up Release R1.06

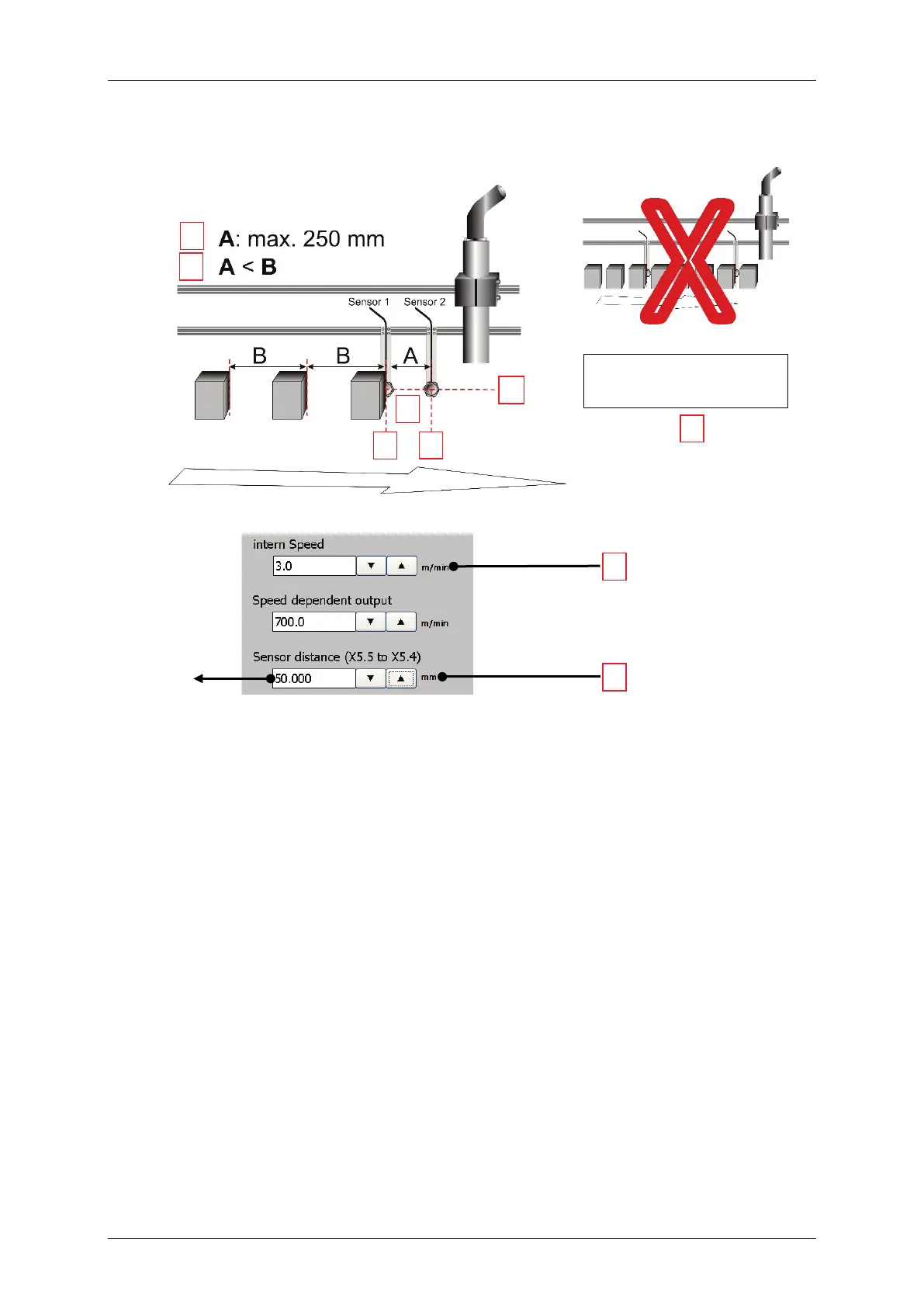

Figure 158 Sensor distance – speed and positioning determination with two sensors
1 – Both sensors at the same height
6 – Input field <Sensor distance>
2 – Distance between sensors <A>
7 – Sensor 1 – Start measurement –
Connected to X5.5.
3 – Maximum <Sensor distance>
8 – Sensor 2 – Stop measurement –
Connected to X5.4. This sensors
works also as PrintGo sensor
4 – The Distance A (between the 2
sensors) has to be smaller than
Distance B (between the products)
9 – Input field <intern Speed>
5 – Wrong setup – more than one product
between the 2 sensors
