2-180 Service Manual
7462

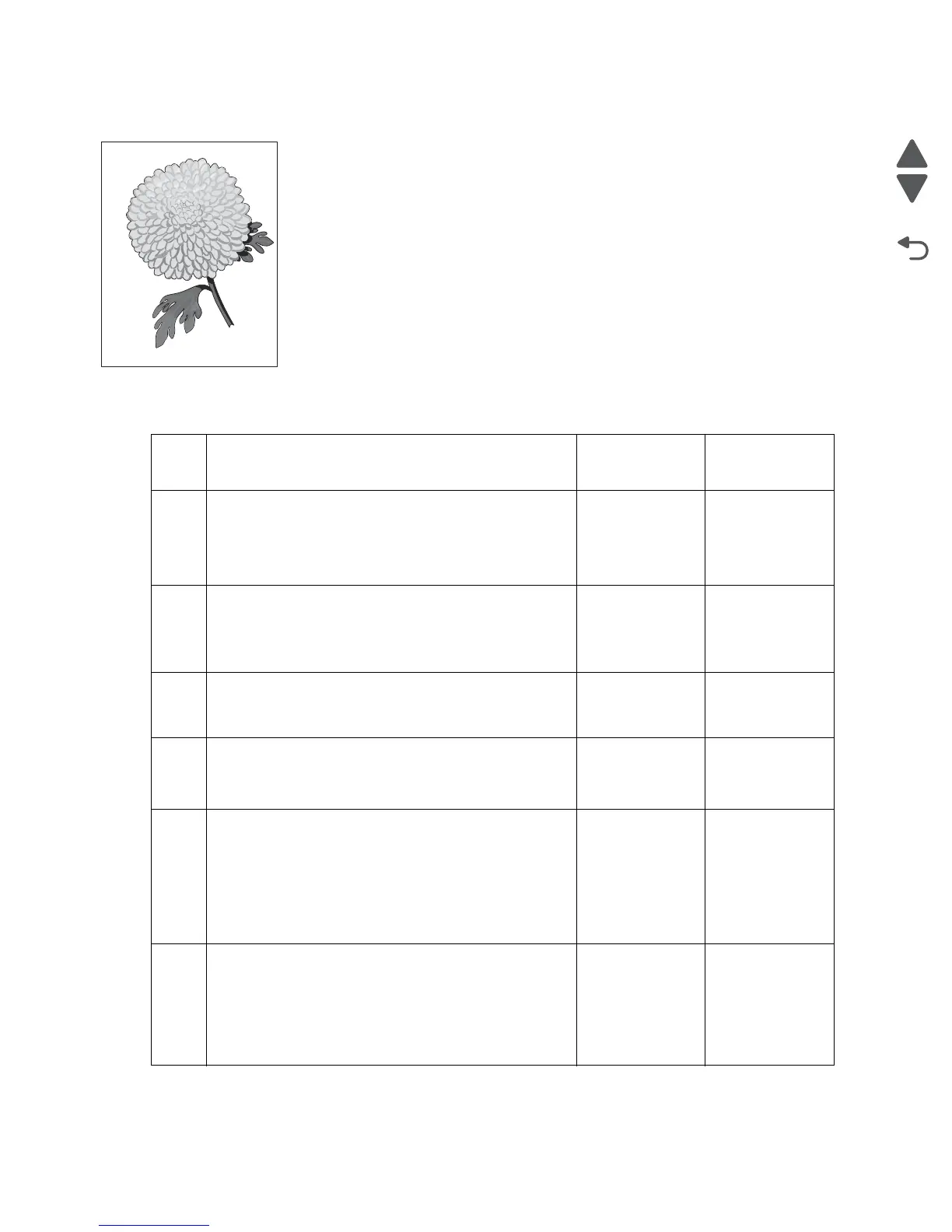

Skew (using ADF)
The printed image is not paralleled with both sides of the media.
Step Check Yes No
1 Check printer installation placement.
Check the installation surface for irregularities.
Check for damaged printer caster.
Is the setup surface normal?
Go to step 2. Correct the
installation
placement.
2
Properly load document into the ADF unit assembly and
ensure all guides are set correctly.
Re-print the defective image.
Does the error continue?
Go to step 3. Problem
resolved.
3
Check for obstructions in the area of the media feed
path in the ADF.
Is the media feed path free from any obstructions?
Go to step 4. Remove
obstructions.
4
Is the ADF left cover assembly properly and evenly
closed.
Go to step 5. Open then
properly close
the ADF left
cover assembly.
5
Check the ADF/pick roll assembly for damage and
wear.
Is the ADF feed/pick roll assembly free from damage
and wear?
Go to step 6. Replace the
ADF feed/pick
roll assembly.
Go to “ADF
feed / pick roll
assembly
removal” on
page 4-56.
6
Check the ADF separator roll.
Is the ADF separator roll free from damage and wear?
Go to step 7. Replace the
ADF separation
roll.
Go to “ADF
separator roll
removal” on
page 4-57.
Leading edge
Trailing edge
To Next Page
