3. Diagnostic aids

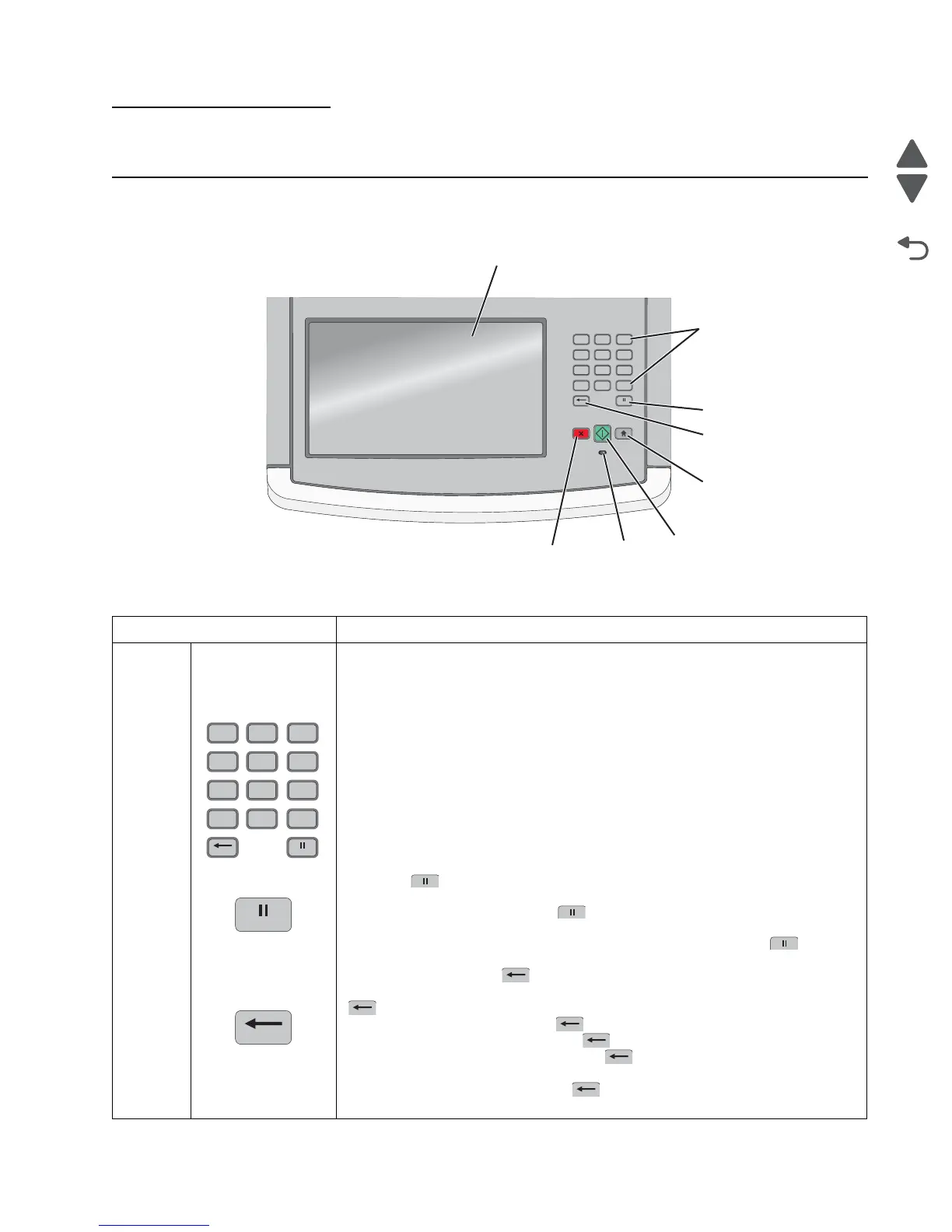

Understanding the printer control panel
Item Description
1 Display View scanning, copying, faxing, and printing options as well as status and error
messages.
2 Keypad Enter numbers or symbols on the display.
3 Dial Pause • Press to cause a two- or three-second dial pause in a fax number. In the
Fax To field, a Dial Pause is represented by a comma (,).
• From the home screen, press to redial a fax number.
• The button functions only within the Fax menu or with fax functions. When
outside of the Fax menu, fax function, or home screen, pressing causes
an error beep.
4 Back In the Copy menu, press to delete the right-most digit of the value in the Copy
Count.The default value of 1 appears if the entire number is deleted by pressing
numerous times.
In the Fax Destination List, press to delete the right-most digit of a number
entered manually. You can also press to delete an entire shortcut entry. Once
an entire line is deleted, another press of causes the cursor to move up one
line.
In the E-mail Destination List, press to delete the character to the left of the
cursor. If the character is in a shortcut, then the shortcut is deleted.
