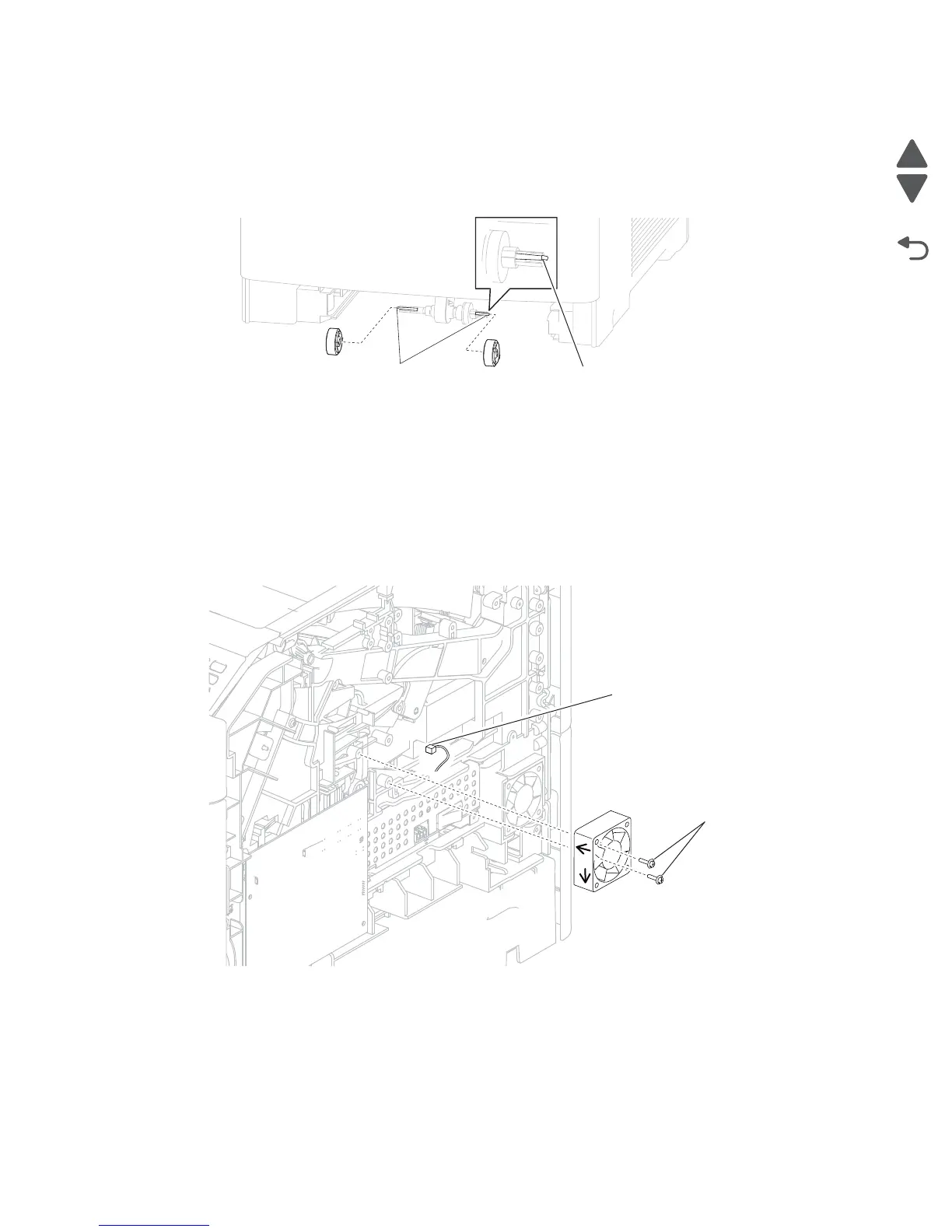

Pick roll assembly removal
1. Remove the media tray.
2. Gently pull the pick arm assembly down, and release the two hooks (A) securing the two pick roll
assemblies.
3. Remove the two pick roll assemblies.
Replacement Warning: When replacing the pick roll assembly, do not touch the rubber surface.
Print cartridge cooling fan removal
1. Remove the side cover, right. See “Side cover, right removal (models X651, X652, X654, and X656)” on
page 4-119 or “Side cover, right removal (model X658)” on page 4-118.
2. Remove the screw (A) securing the print cartridge cooling fan to the machine.
3. Remove the print cartridge cooling fan.
4. Disconnect the connection (B) from the print cartridge cooling fan.
Replacement Warning: When replacing the print cartridge cooling fan, ensure that it is installed as shown in
the picture.
A
A
A
B
