Repair information 4-143
7462
Scanner / ADF duplex CCD exposure lamp removal
1. Remove the scanner CCD assembly or the ADF duplex CCD assembly. See “Scanner CCD assembly
removal” on page 4-88 or “ADF duplex CCD assembly removal (X654, X656, and X658)” on
page 4-65.

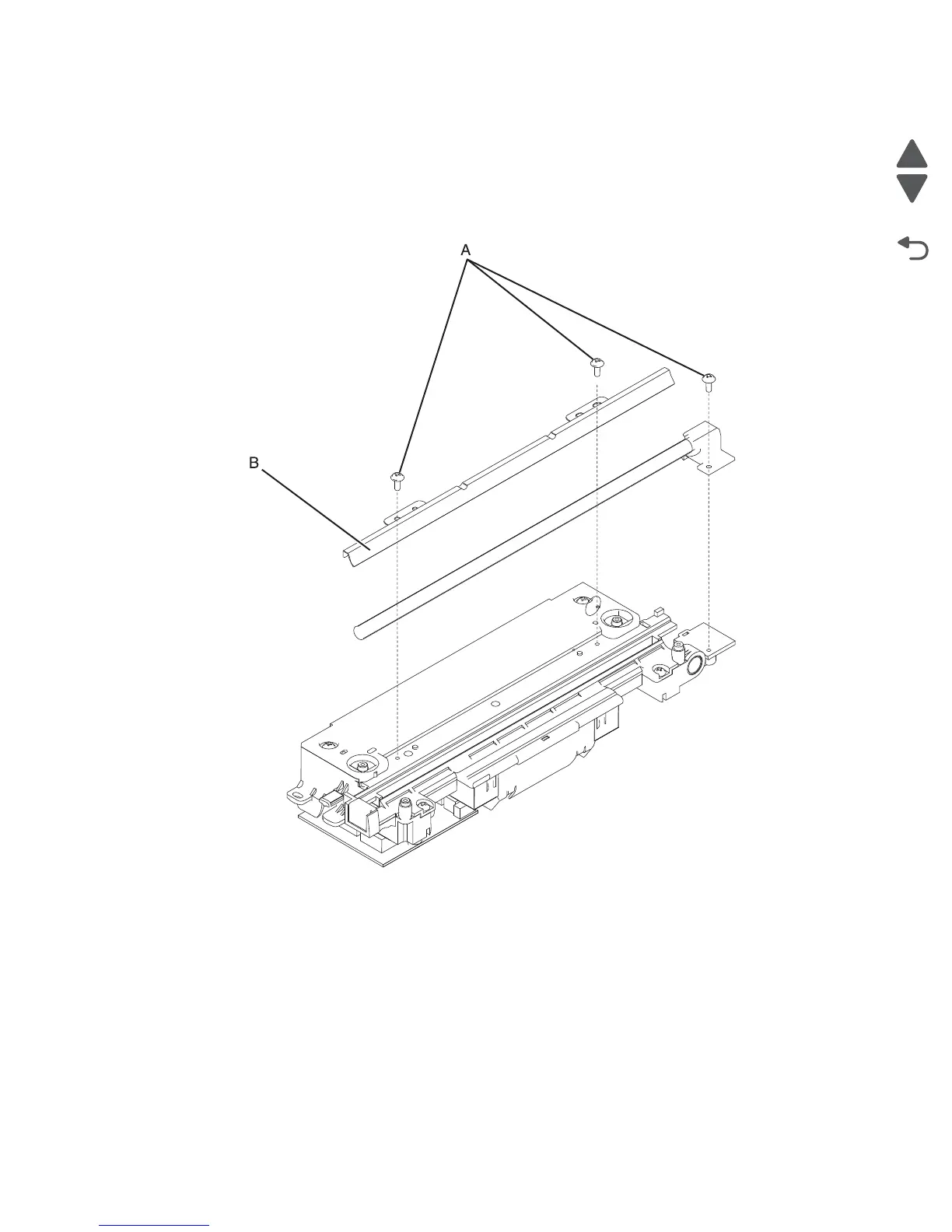

2. Remove the three screws (A) securing the scanner exposure lamp and wire harness.
3. Remove the lamp reflector (B) from the CCD assembly.
4. Remove the two screws (C) securing the exposure lamp card from the underside of the CCD assembly,
and lift the card from the CCD assembly.
5. Disconnect the scanner lamp wiring harness from the exposure lamp card.
To Next Page
