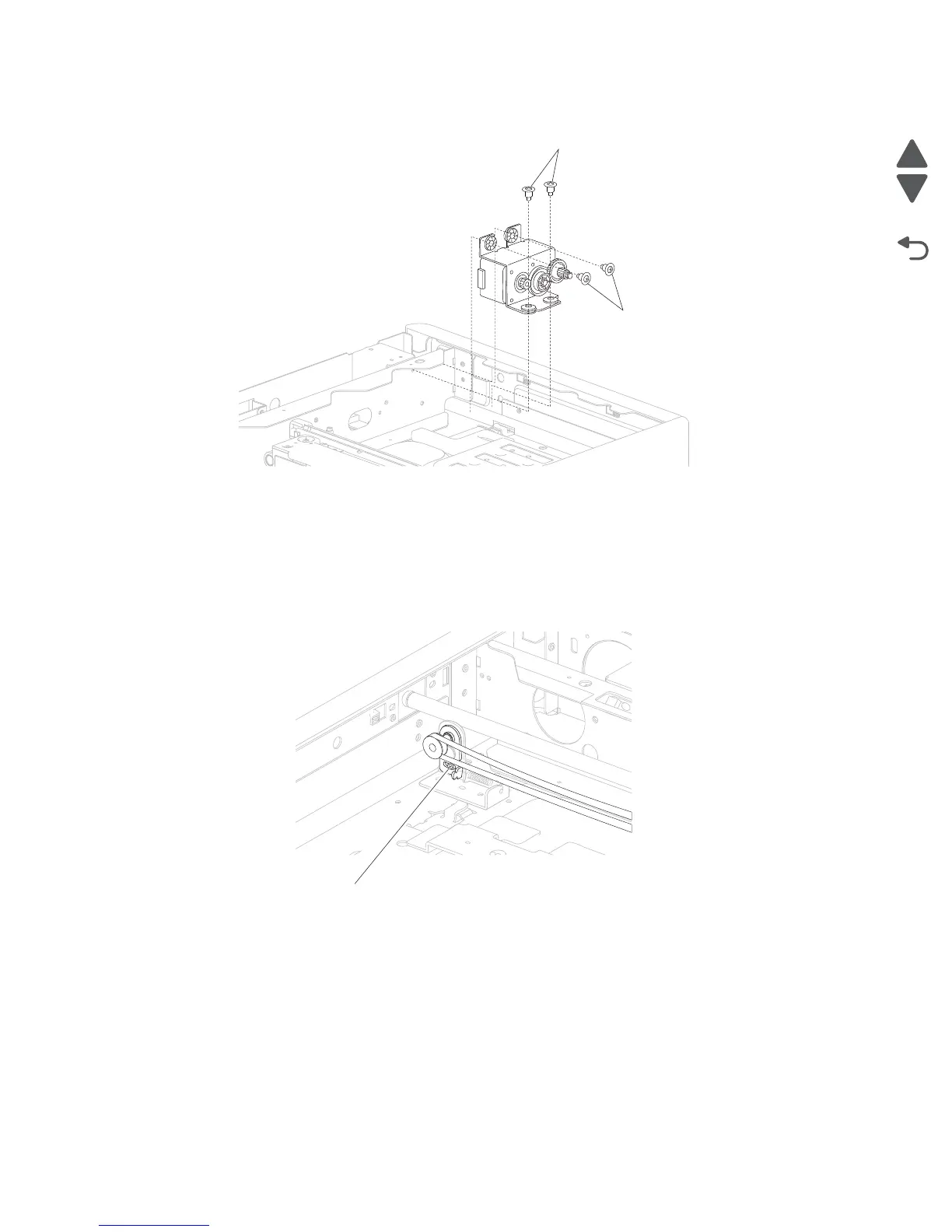

8. Remove the four screws (F) securing the carriage drive motor assembly with cable to the flatbed frame.
9. Remove the carriage drive motor assembly with cable.
Carriage belt removal
1. Remove the scanner platen glass cover assembly. See “Scanner platen glass cover assembly removal
(models X651, X652, X654 and X656)” on page 4-137 or “Scanner platen glass cover assembly
removal (model X658)” on page 4-136.
2. Loosen the screw (A) on the carriage belt tensioner.
3. Pull slack in the carriage belt, and retighten screw (A).
4. Remove the clip (B) and retaining washer (C) from carriage drive motor assembly with cable.
5. Remove the carriage belt from the carriage belt tension assembly and the drive motor assembly.
6. Slide the carriage belt out of the rear side of the carriage assembly.
