4-162 Service Manual
7462
High capacity input tray (HCIT) drawer slide assembly removal
The left and right drawer slide assemblies are the same, and only one is in a package. The instructions below
are for removing the left slide; removing the right slide has similar instructions.
1. Remove the HCIT media tray assembly. See “High capacity input tray (HCIT) media tray assembly
removal” on page 4-152.

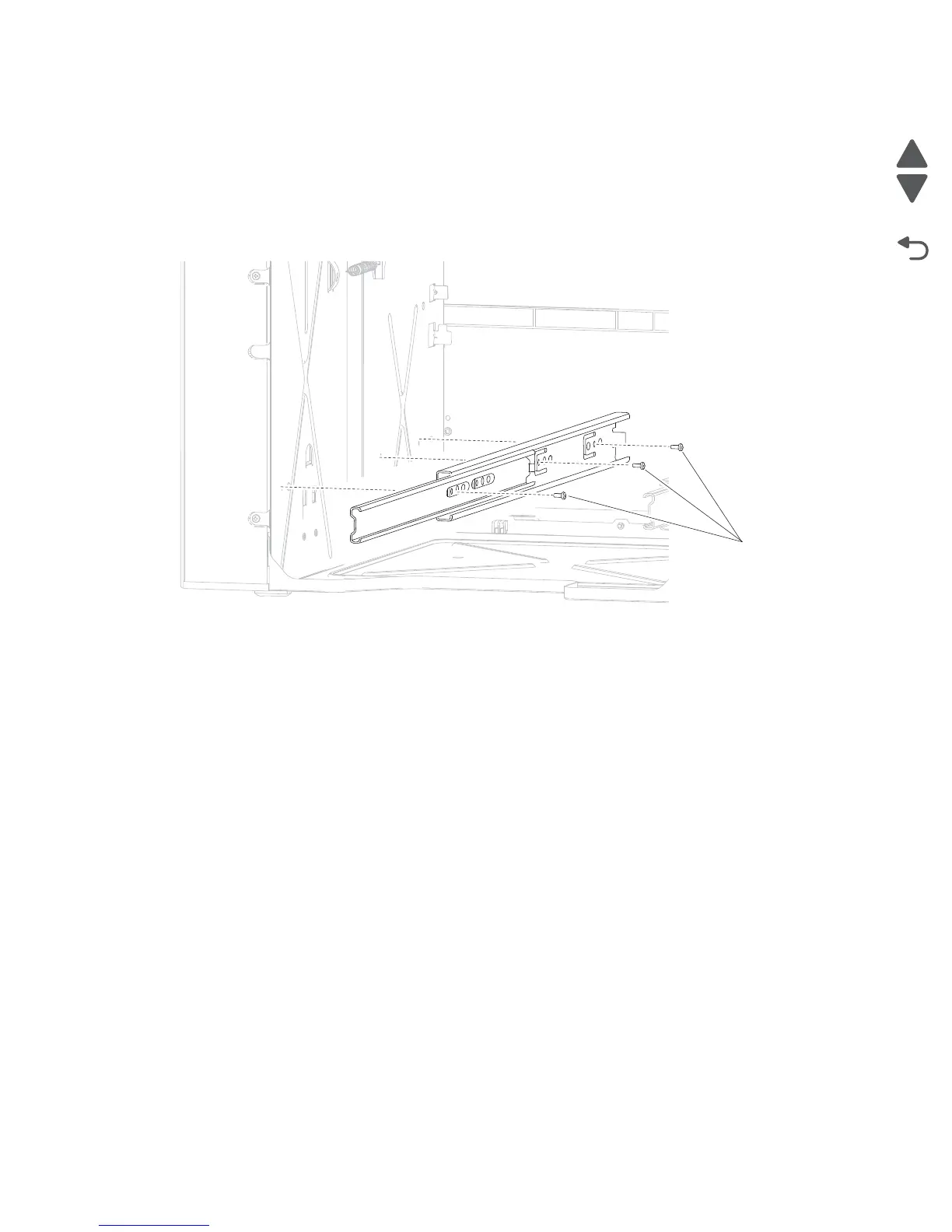

2. Remove the three screws (A) securing the HCIT drawer slide to the frame of the drawer.
3. Remove the HCIT drawer slide.
