Fuser unit assembly (type 1 and type 2)

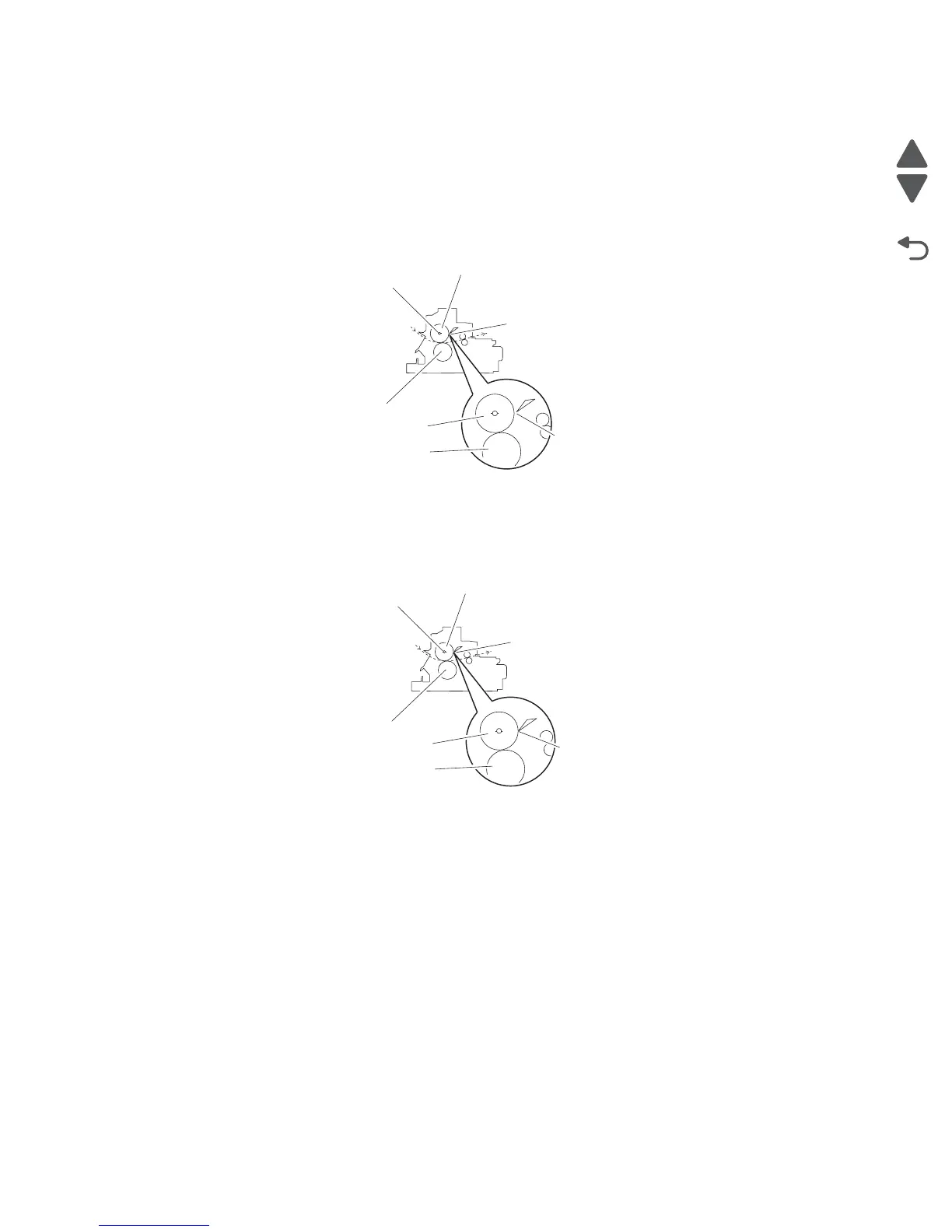

Type 1 fuser unit assembly
In the type 1 fuser unit assembly, the detacs, which are used to prevent the media from sticking to the hot roll,
do not make contact with the hot roller. The type 1 fuser unit assembly has a life of 300K.
Type 2 fuser unit assembly
In the type 2 fuser unit assembly, the detacs, which are used to prevent the media from sticking to the hot roll,
do make full contact with the hot roller. The type 2 fuser unit assembly has a life of 150K.
Pressure roll
Hot roll
Hot roll
Pressure roll
Fuser lamp
Non contact detac
Non contact detac
Hot roll
Pressure roll
Fuser lamp
Full contact detac
Full contact detac
Pressure roll
Hot roll
