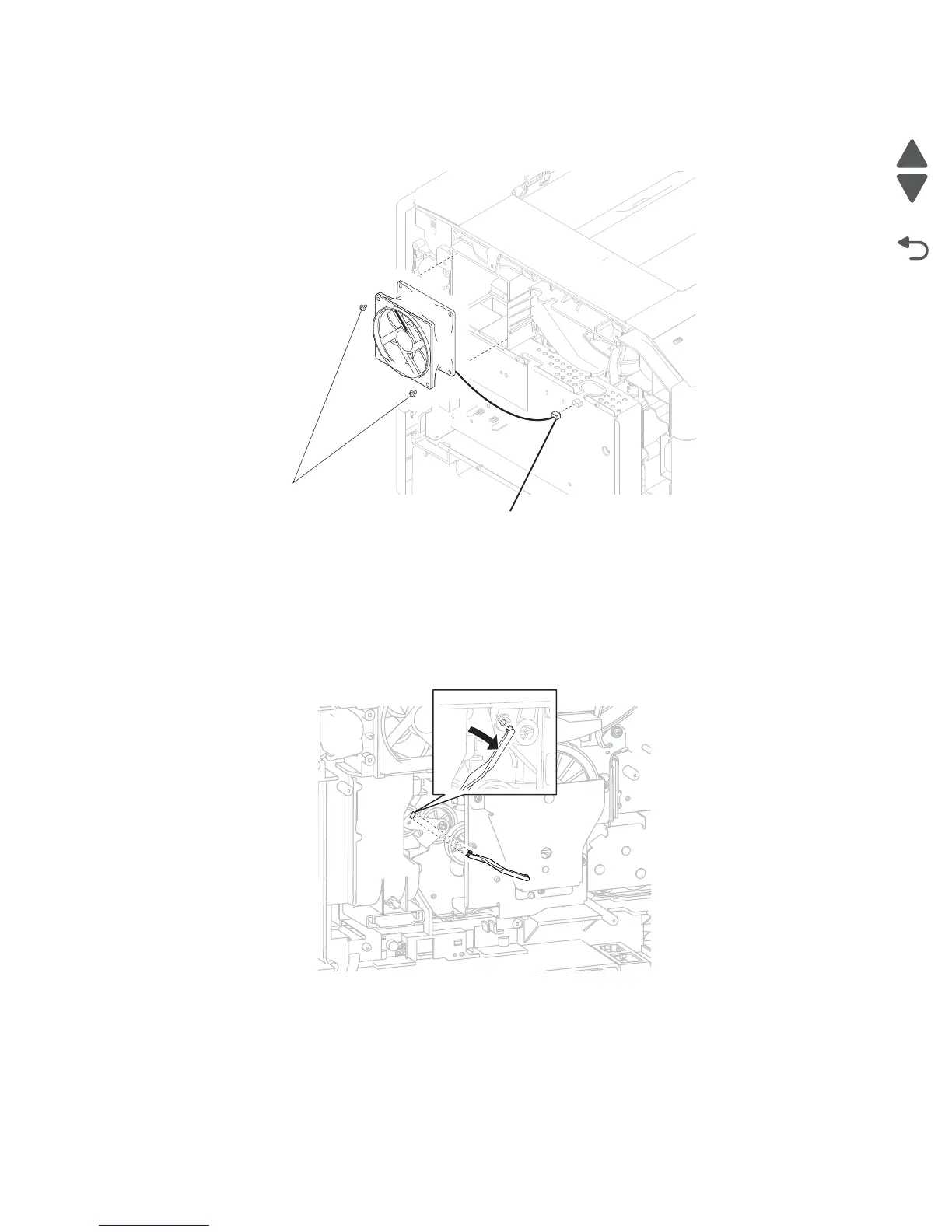

5. Remove the two screws (B) securing the fuser cooling fan to the machine.
6. Remove the fuser cooling fan.
7. Remove the fuser cooling fan connection (C).
Fuser drive release linkage removal
1. Remove the system card assembly. See “System card assembly removal” on page 4-47.
2. Gently unsnap the upper end of the fuser drive release linkage from the machine.
3. Rotate the fuser drive release linkage 90° to release the lower end of the fuser drive release linkage from the
machine.
4. Remove the fuser drive release linkage.
