4-56 Service Manual

7462

Go Back

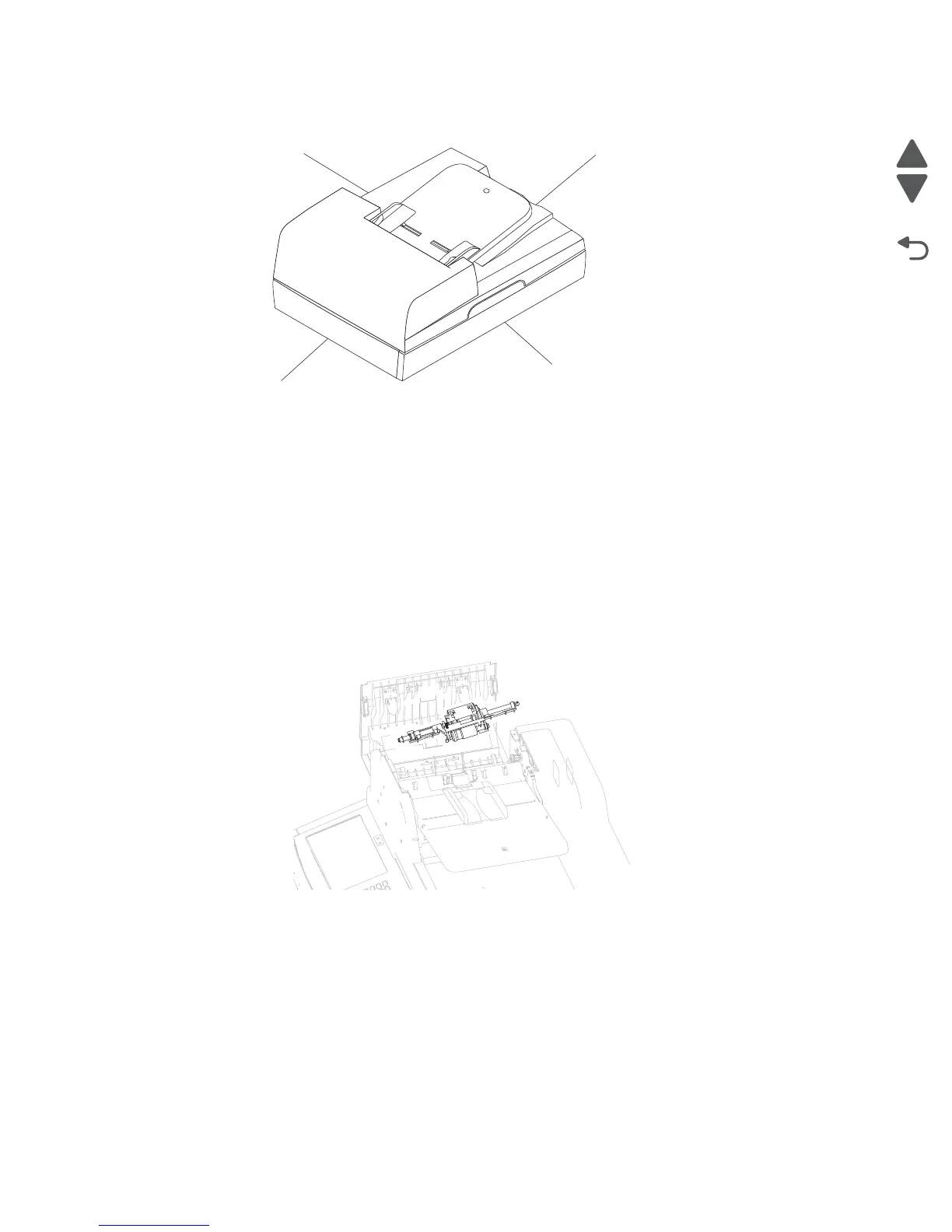

ADF feed / pick roll assembly removal

1. Lift the ADF top door assembly.

2. Slide the ADF pick roll assembly to the front.

3. Lift the rear of the ADF pick roll assembly.

4. Remove the ADF pick roll assembly.

Rear

Right

Front

Left
