Lexmark T65 Series Service Manual

Repair information 4-133
7462
Go Back
Previous
Next

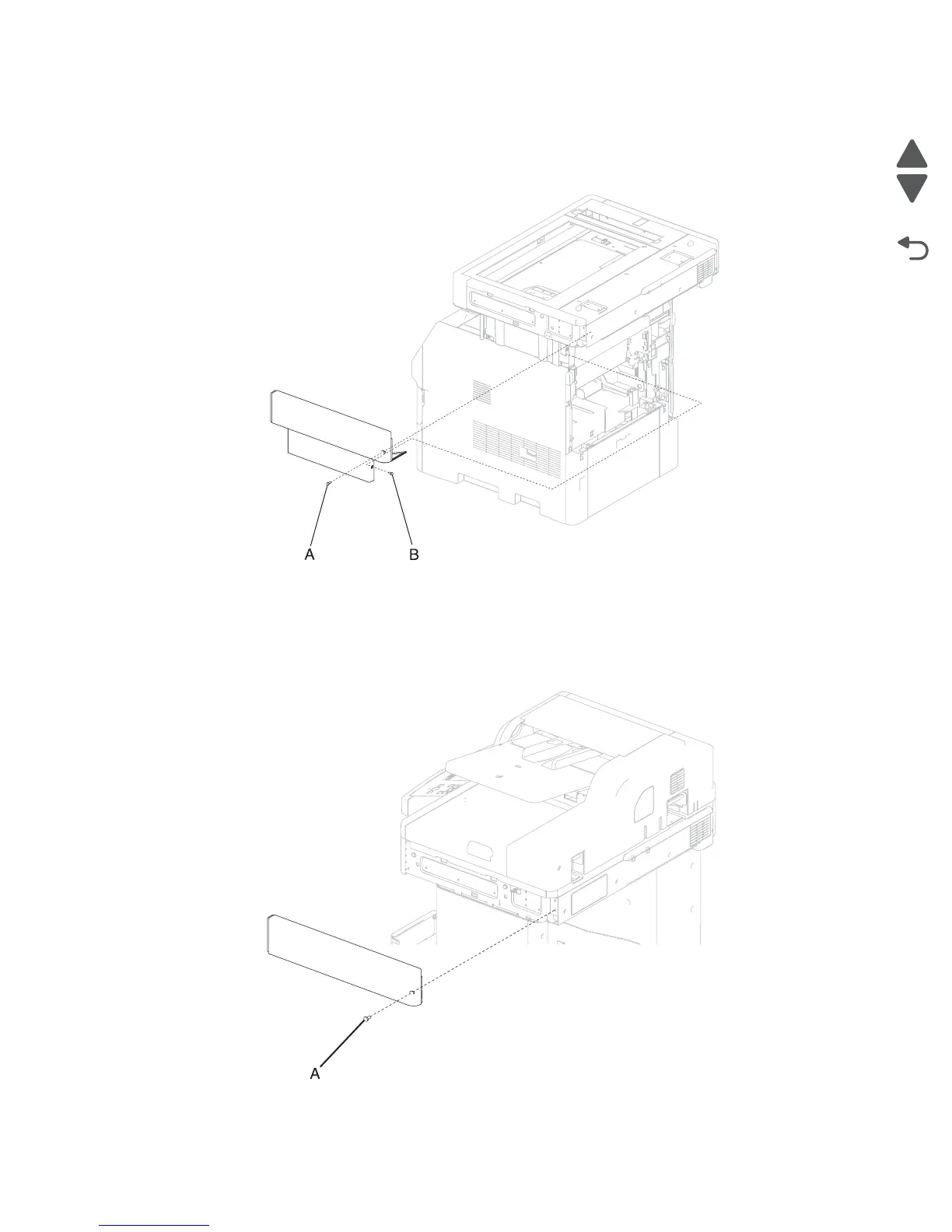

Scanner cover, right removal (models X651, X652, X654, and X656)
1. Remove the scanner cover, rear. See “Scanner cover, rear removal” on page 4-130.
2. Remove the plastic screw (A) and metal screw (B) securing the scanner cover, right to the scanner.
3. Side the scanner cover, right to the rear, and remove.
Scanner cover, right removal (model X658)
1. Remove the scanner cover, rear. See “Scanner cover, right removal (model X658)” on page 4-133.
2. Remove the screw (A) securing the scanner cover, right to the machine.
3. Slide the scanner cover, right to the rear, and remove.
Replacement note: Always replace the scanner cover, front before replacing the scanner cover, right.
