Repair information 4-159
7462
High capacity input tray (HCIT) cover, left removal
Note: Carefully remove the base machine from the HCIT tray assembly before proceeding.
Note: Before removing the HCIT cover, left, first remove the left side anti-tip latch assembly. See “High
capacity input tray (HCIT) anti-tip latch assembly removal” on page 4-161.
1. Remove the HCIT cover, rear. See “High capacity input tray (HCIT) cover, rear removal” on
page 4-155.

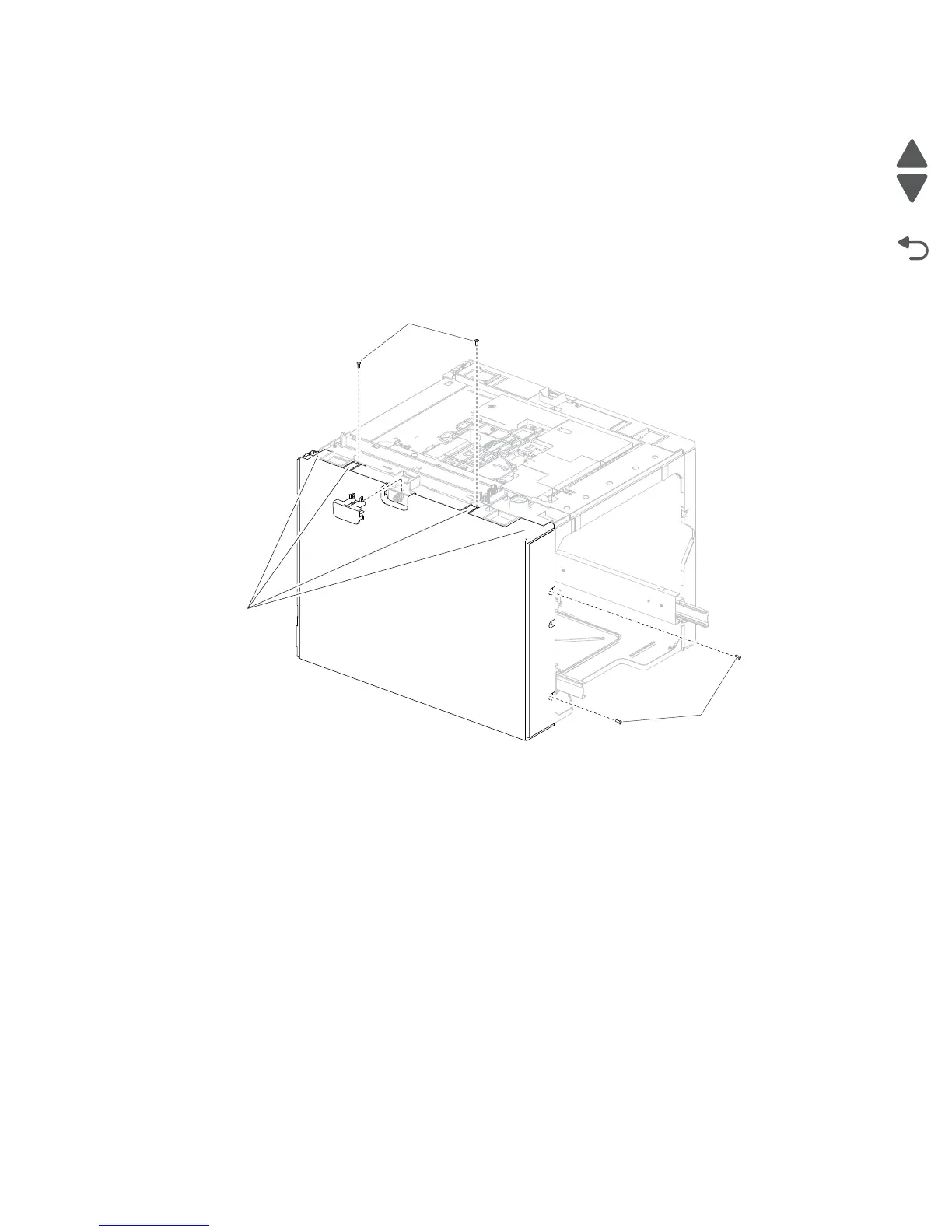

2. Remove the six screws (A) securing the HCIT cover, left to the drawer.
3. Use a screwdriver to gently pry up on the tabs (B).
