Lexmark T65 Series Service Manual

Repair information 4-31
7462
Go Back
Previous
Next
Print cartridge clamp assembly removal
Note: This procedure can be applied to the left or right printer cartridge hold down assembly.
1. Remove the laser cover. See “Laser cover removal (models X651, X652, X654, and X656)” on
page 4-103 or “Laser cover removal (model X658)” on page 4-101.

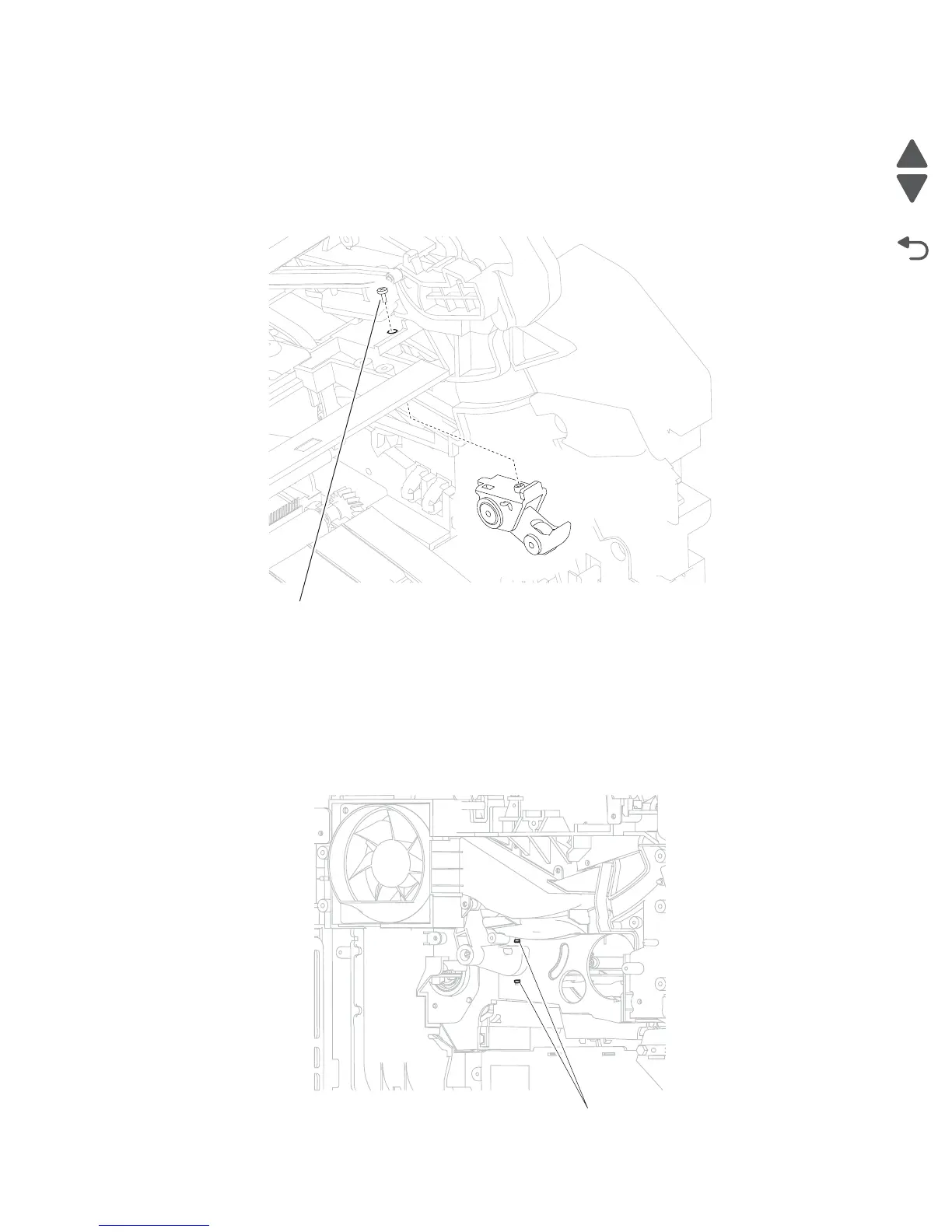

2. Remove the screw (A) securing the print cartridge clamp assembly to the machine.
3. Remove the print cartridge clamp assembly.
Print cartridge ID connector assembly removal
1. Remove the print cartridge.
2. Remove the main drive motor assembly. See “Main drive motor assembly removal” on page 4-20.
3. Release the two hooks (A) securing the print cartridge ID connector assembly to the machine.
A
A
