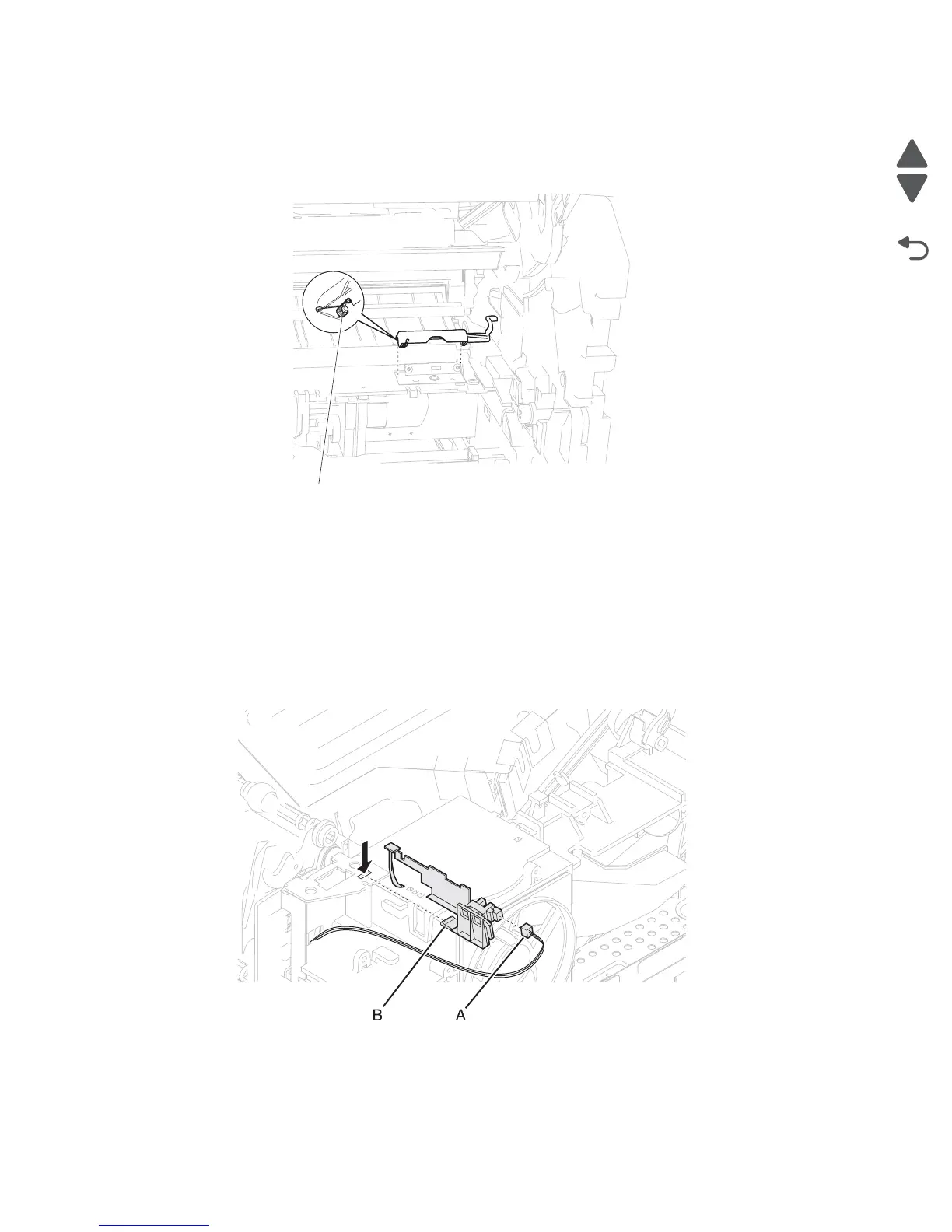

Sensor shield assembly removal
1. Remove the inner deflector. See “Inner deflector removal” on page 4-18.
2. Gently unsnap the sensor shield assembly from the machine.
3. Remove the sensor shield assembly.
Replacement Warning: When replacing the sensor shield assembly, ensure that the spring (A) is properly
aligned and the sensor shield assembly opens and closes properly.
Standard bin actuator assembly removal
1. Remove the laser cover. See “Laser cover removal (models X651, X652, X654, and X656)” on
page 4-103 or “Laser cover removal (model X658)” on page 4-101.
2. Disconnect the connection (A) from the standard bin actuator assembly.
3. Press the tab (B) to release the standard bin actuator assembly from the machine.
4. Remove the standard bin actuator assembly.
A
