Repair information 4-253
7462
Go Back
Previous
Next
Offset stacker sensor (deflector HP) removal
1. Remove the offset stacker left cover. See “Offset stacker left cover removal” on page 4-238.

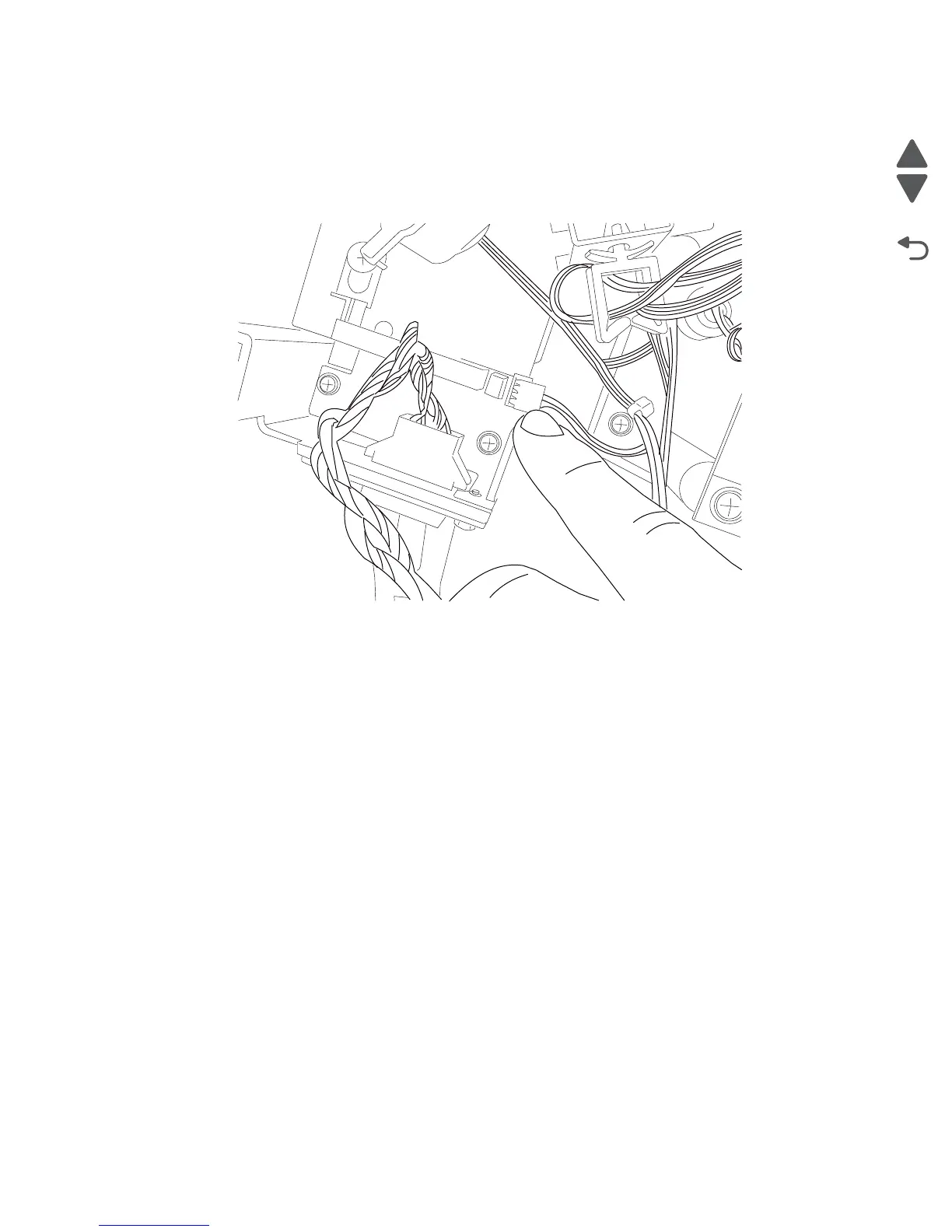

2. Disconnect the harness to the sensor (deflector HP).
3. Release the tabs securing the sensor to the offset stacker.
Note: The tabs may be difficult to access. The use of a spring hook or flat-blade screwdriver may be
necessary to release the tabs.
