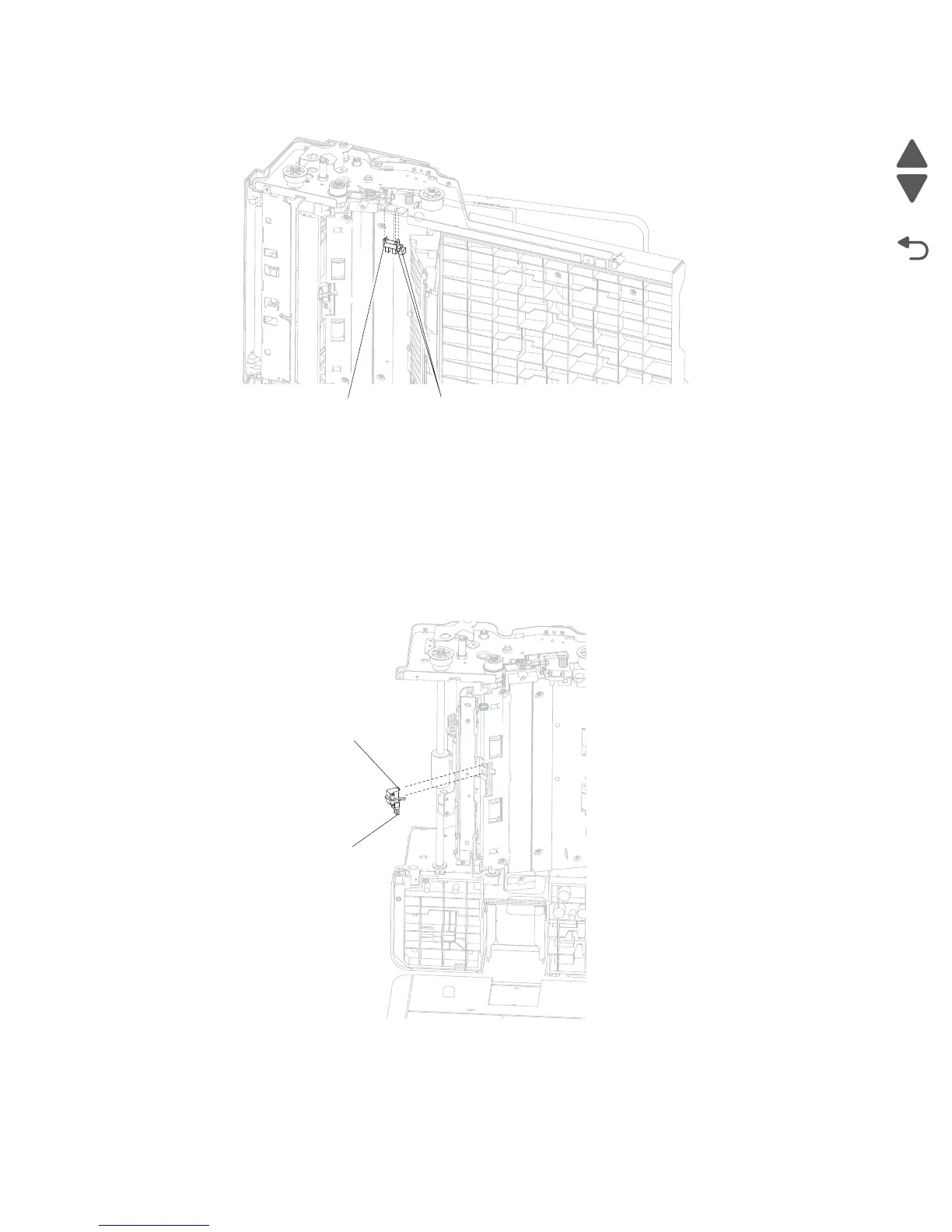

4. Remove the sensor by squeezing the tabs (A) and removing it from the front of the ADF frame.
5. Disconnect the lower sensor (ADF lower door interlock) harness.
6. Remove the sensor (ADF lower door interlock).
Sensor (ADF 2nd scan) removal
1. Remove the ADF media pinch pad assembly. See “ADF media pinch pad assembly removal” on
page 4-70.
2. Remove the sensor (ADF 2nd scan) harness from the sensor.
3. Remove the sensor from the pinch pad mounting bracket assembly by squeezing the tabs (A) on the
sensor.
4. Remove the sensor (ADF 2nd scan).
A
A
A
A
