4-236 Service Manual
7462

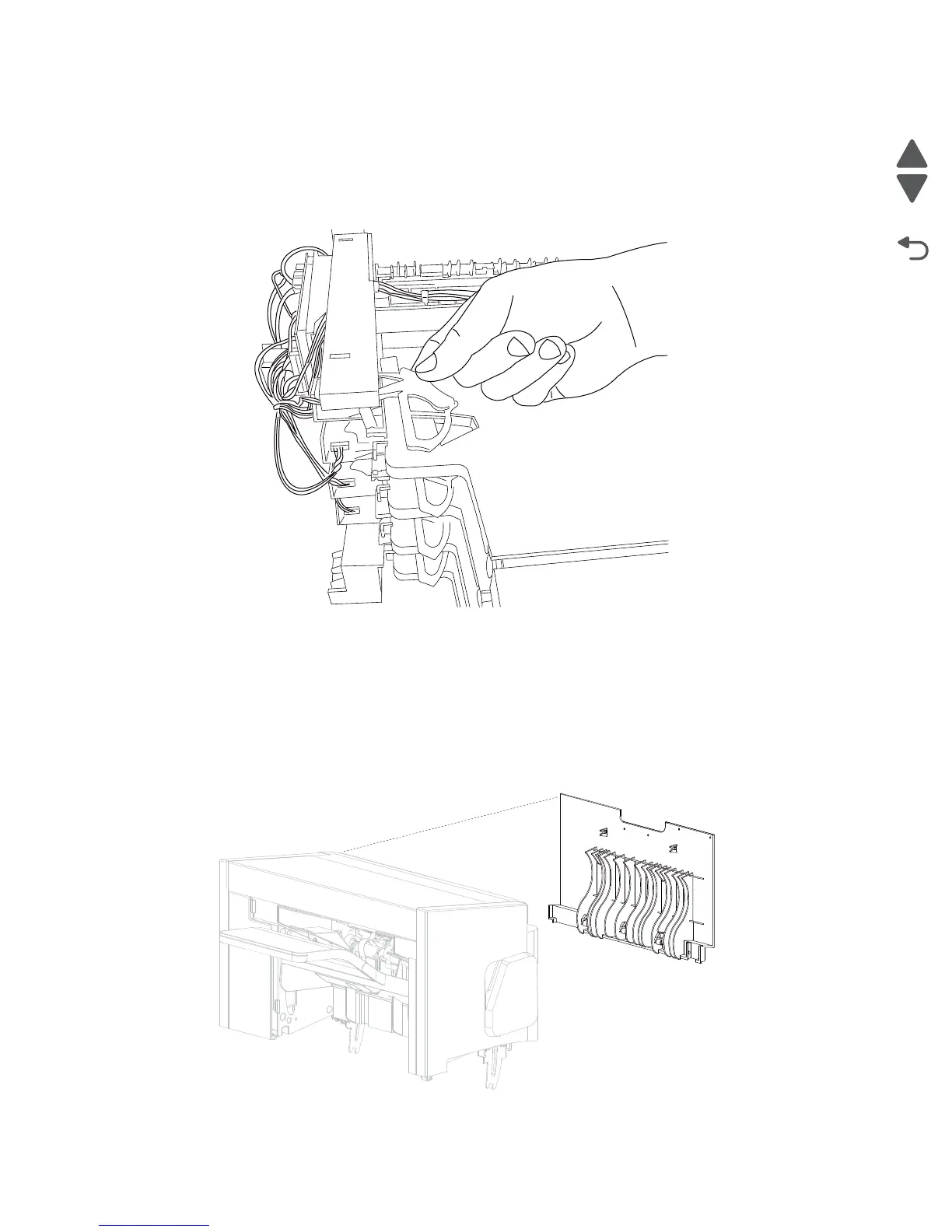

4-bin mailbox assembly media bin full actuator removal
1. Remove the 4-bin mailbox assembly left cover. See “4-bin mailbox assembly left cover removal” on
page 4-218.
2. Pry the front hinge of the media bin full actuator towards the rear until the front boss is released from its
socket.
3. Pull the media bin full actuator toward the front and out of 4-bin mailbox assembly.
Offset stacker rear door assembly removal
1. Open the rear door assembly.
2. Force the left hinge out of the slot by pushing the door to the right.
3. Once the left hinge has been disengaged, pull the right hinge out.
4. Remove the offset stacker rear door assembly.
