Repair information 4-235

7462

Go Back

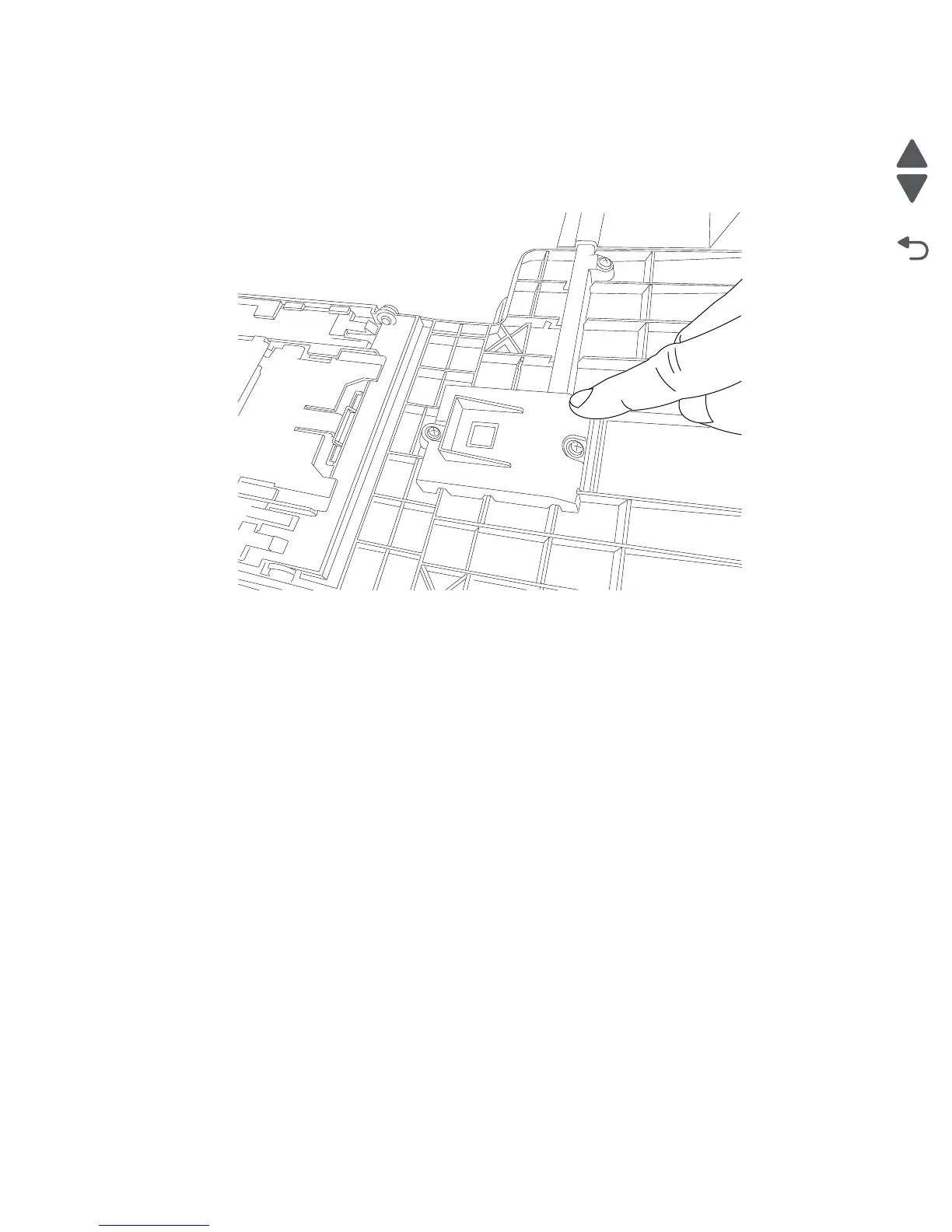

4-bin mailbox assembly LED clear lens removal

1. Remove the 4-bin mailbox standard output bin LED. See “4-bin mailbox assembly sensor (mailbox

empty) removal” on page 4-232.

2. Remove the output bin LED clear lens from the output bin LED bracket.
