4-202 Service Manual

7462

Go Back

MFP stapler assembly sensor (finisher media bin present) removal

1. Remove the LED sensor cover. See “MFP stapler assembly LED sensor cover removal” on

page 4-200.

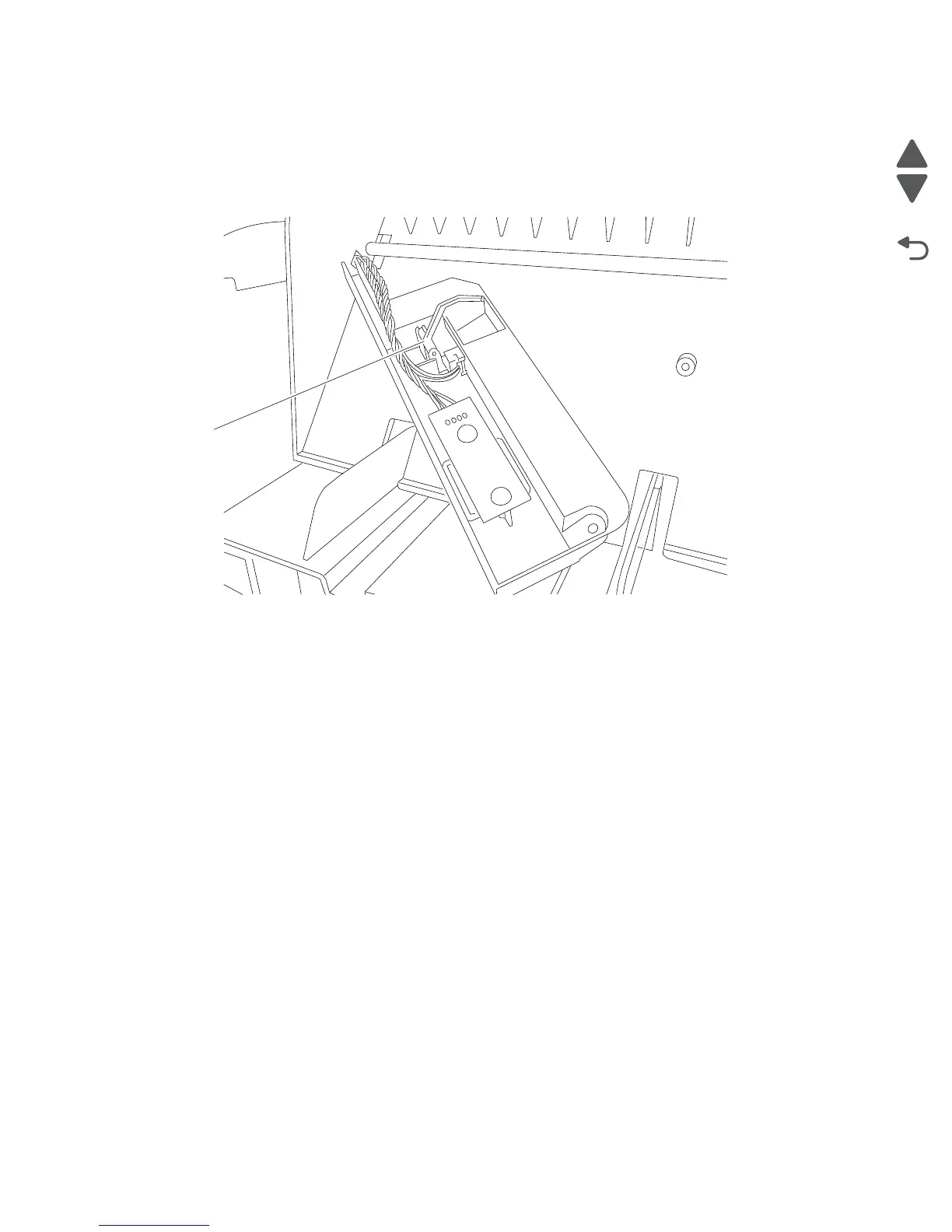

2. Using a flat-blade screwdriver, release the tabs (A) on the sensor and remove it from the sensor cover.

3. Remove the harness connected to the media bin present sensor.

4. Remove the sensor (finisher bin media present).
