Repair information 4-83
7462
ADF right hinge removal
1. Remove the ADF unit assembly. See “ADF unit assembly removal (models X651, X652, X654 and
X656)” on page 4-80 or “ADF unit assembly removal (model X658)” on page 4-80.
2. Remove the ADF cover, rear assembly. See “ADF cover, rear removal” on page 4-60.

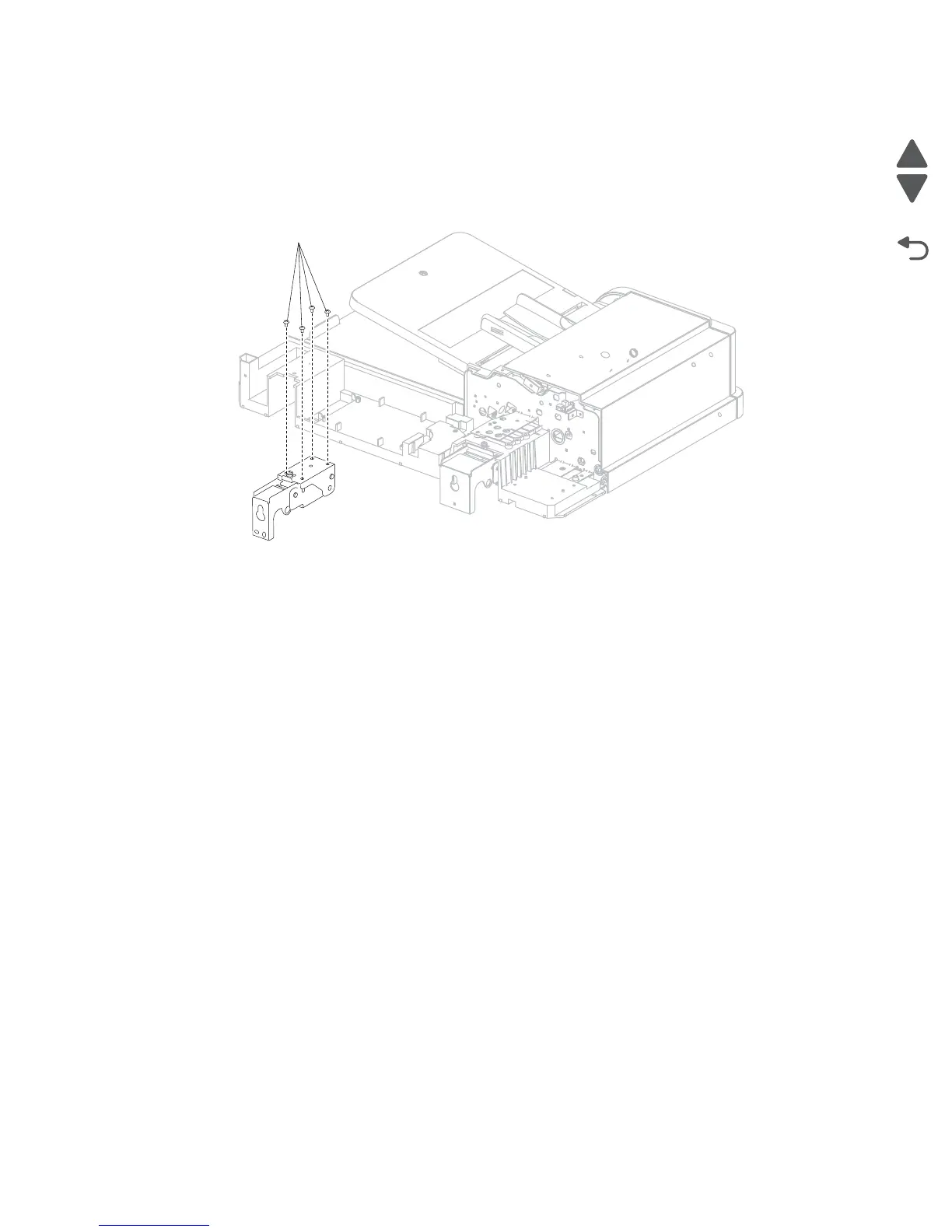

3. Remove the four screws (A) securing the ADF right hinge to the ADF unit assembly.
4. Remove the ADF right hinge.
