3-62 Service Manual

7462

Go Back

Fuser warm-up

The fuser warm-up starts at the time of power on, interlock open or close, jam reset, or return from the low

power mode, and ends when the ready temperature is attained, when a failure occurs, or when executing

diagnosis.

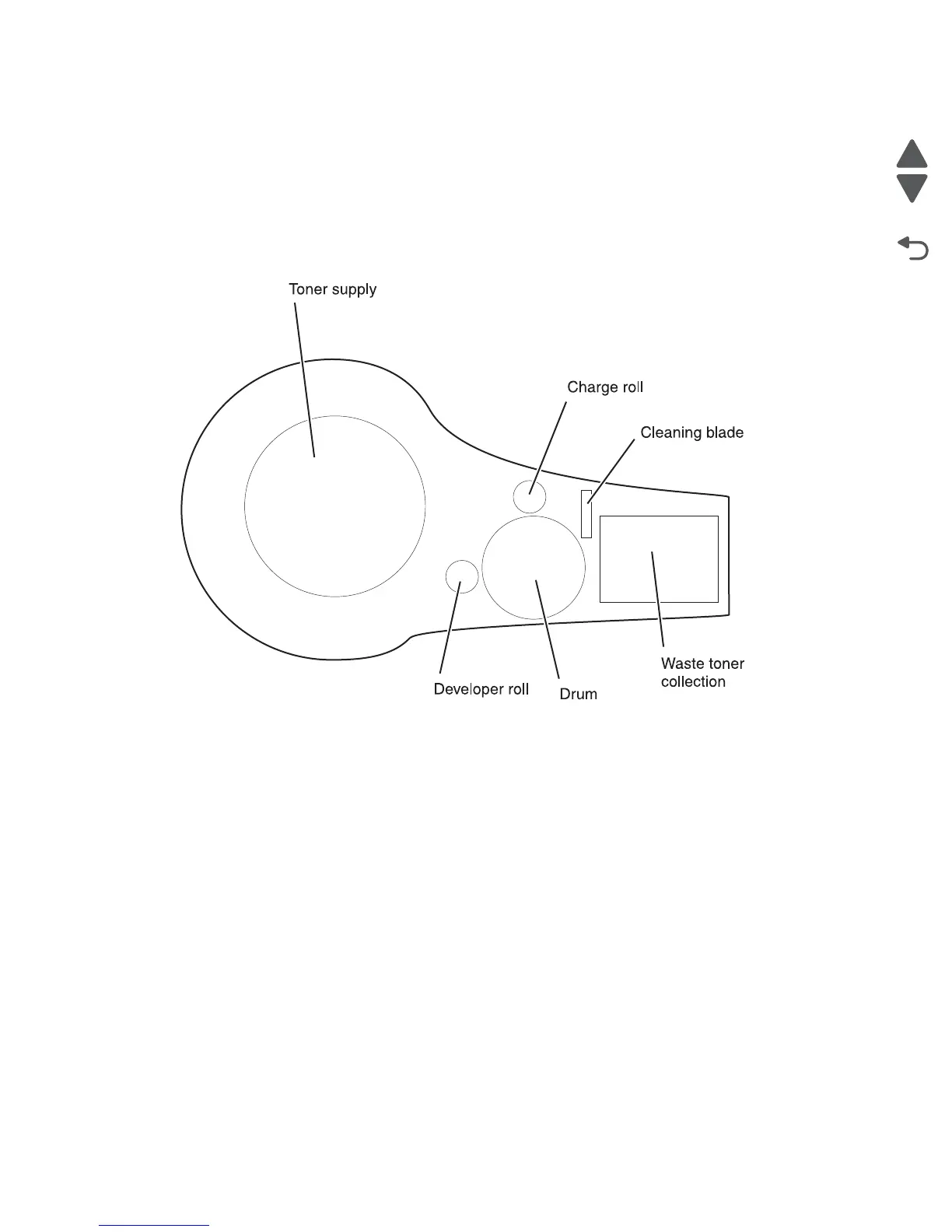

Xerographic and print cartridge components
