3. Push the spring on the right side down, and remove the MPF media guide assembly, by rotating the
assembly vertical and lift up.
Operator panel assembly removal (model X658)

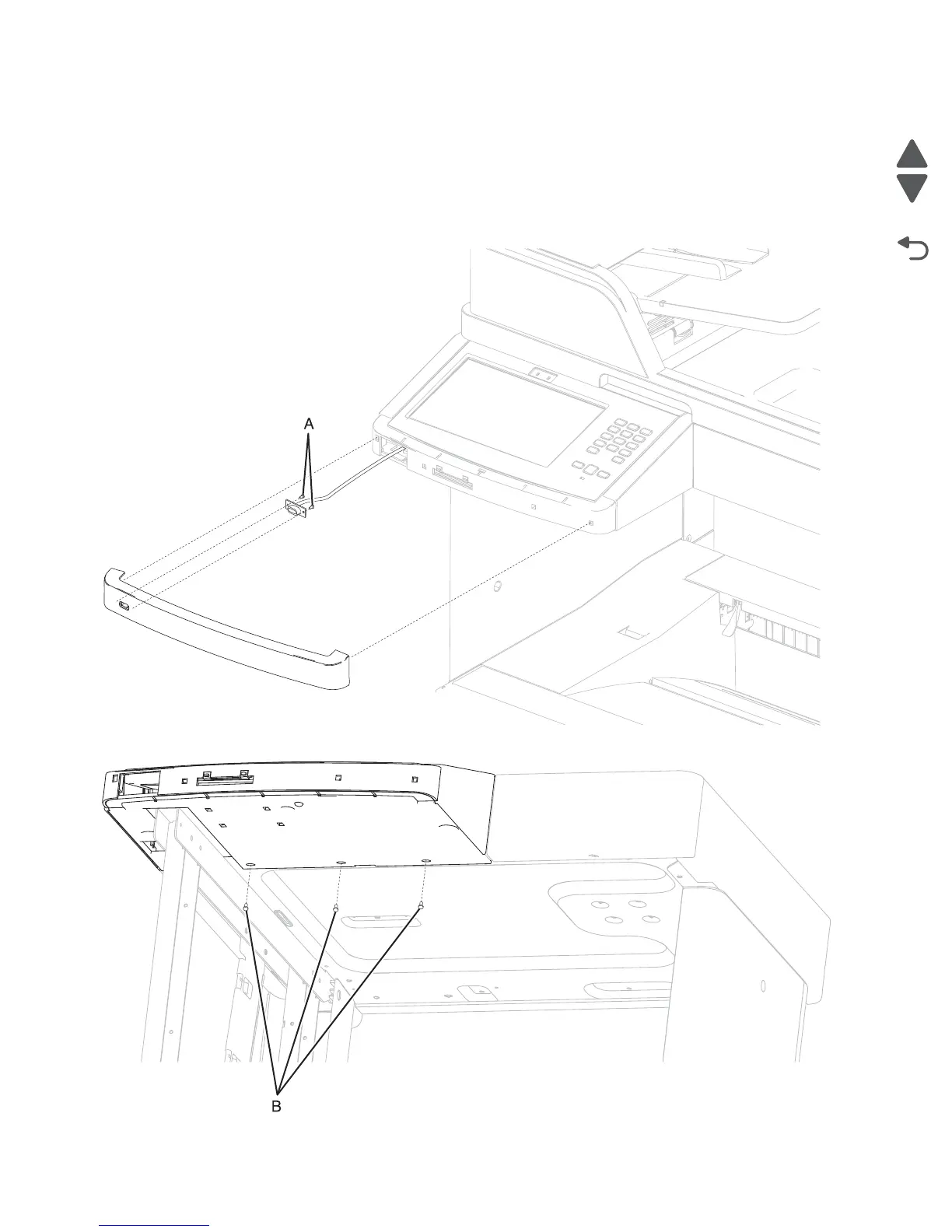

1. Pull the operator panel door assembly forward, and remove.
2. Remove the two screws (A) securing the USB port to the operator panel door assembly.
3. Remove the three screws (B) securing the operator panel assembly bottom to the scanner frame.
