Repair information 4-183

7462

Go Back

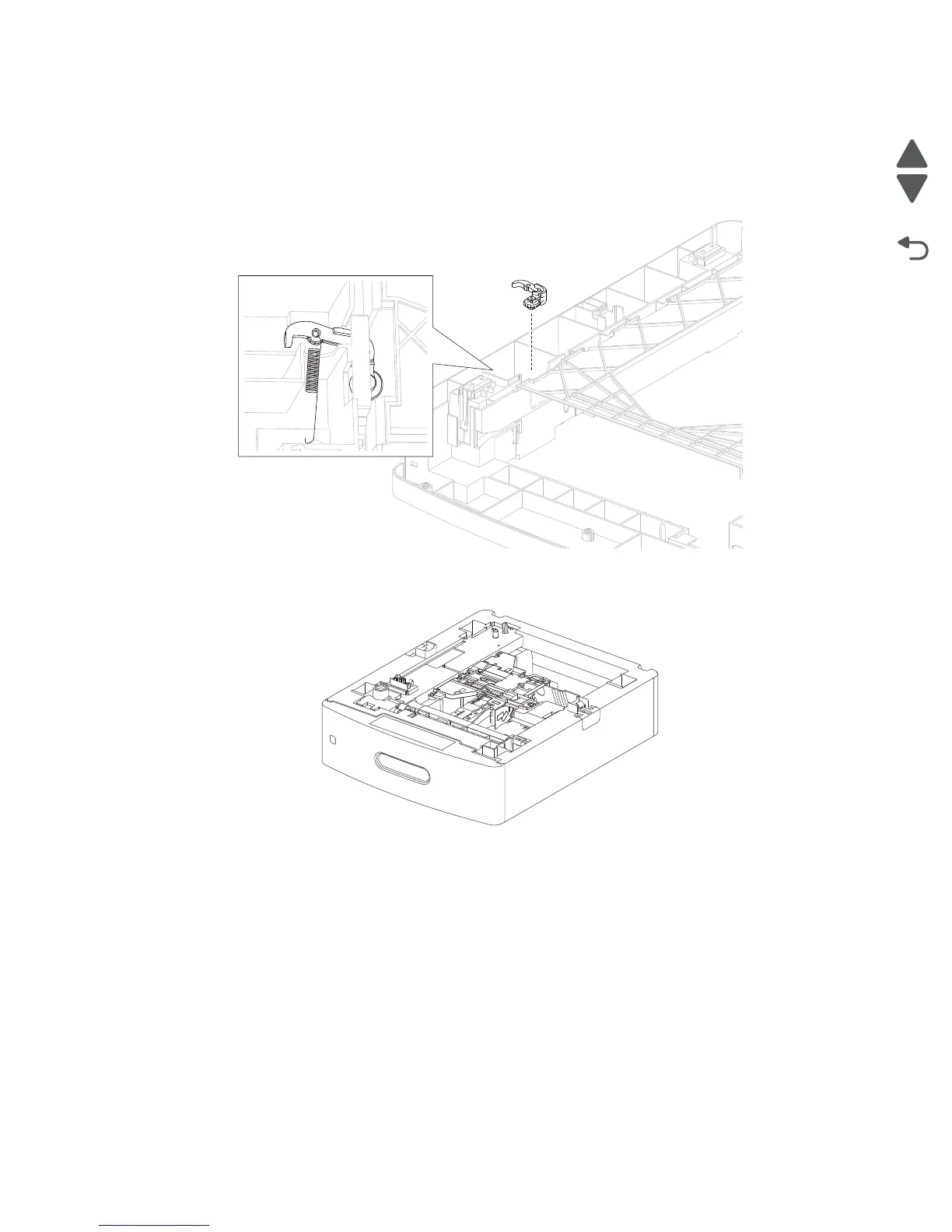

Tray roller catch assembly removal

Note: Carefully remove the base machine from the input option tray assembly before proceeding.

1. Remove the media tray catch spring. See “Media tray catch spring removal” on page 4-181.

2. Remove the tray roller catch assembly from the drawer.

550-sheet option tray assembly
