Repair information 4-173

7462

Go Back

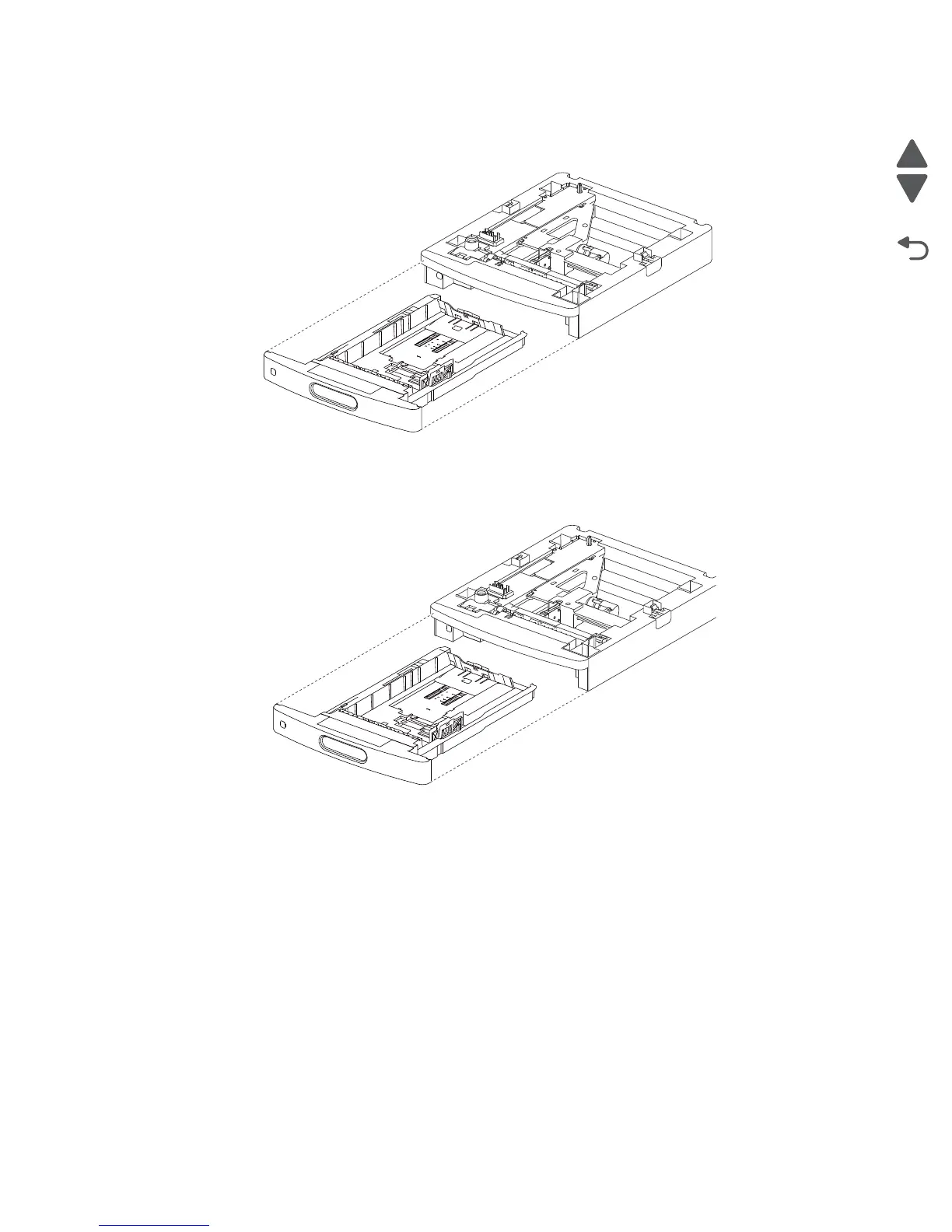

250-sheet media tray assembly removal

Remove the 250-sheet media tray assembly from the 250-sheet option drawer assembly.

250-sheet option drawer assembly removal

Remove the 250-sheet media tray assembly from the 250-sheet option drawer assembly.
