Repair information 4-243

7462

Go Back

Offset stacker standard output bin LED and LED clear lens removal

1. Remove the offset stacker LED sensor cover. See “Offset stacker LED sensor cover removal” on

page 4-241.

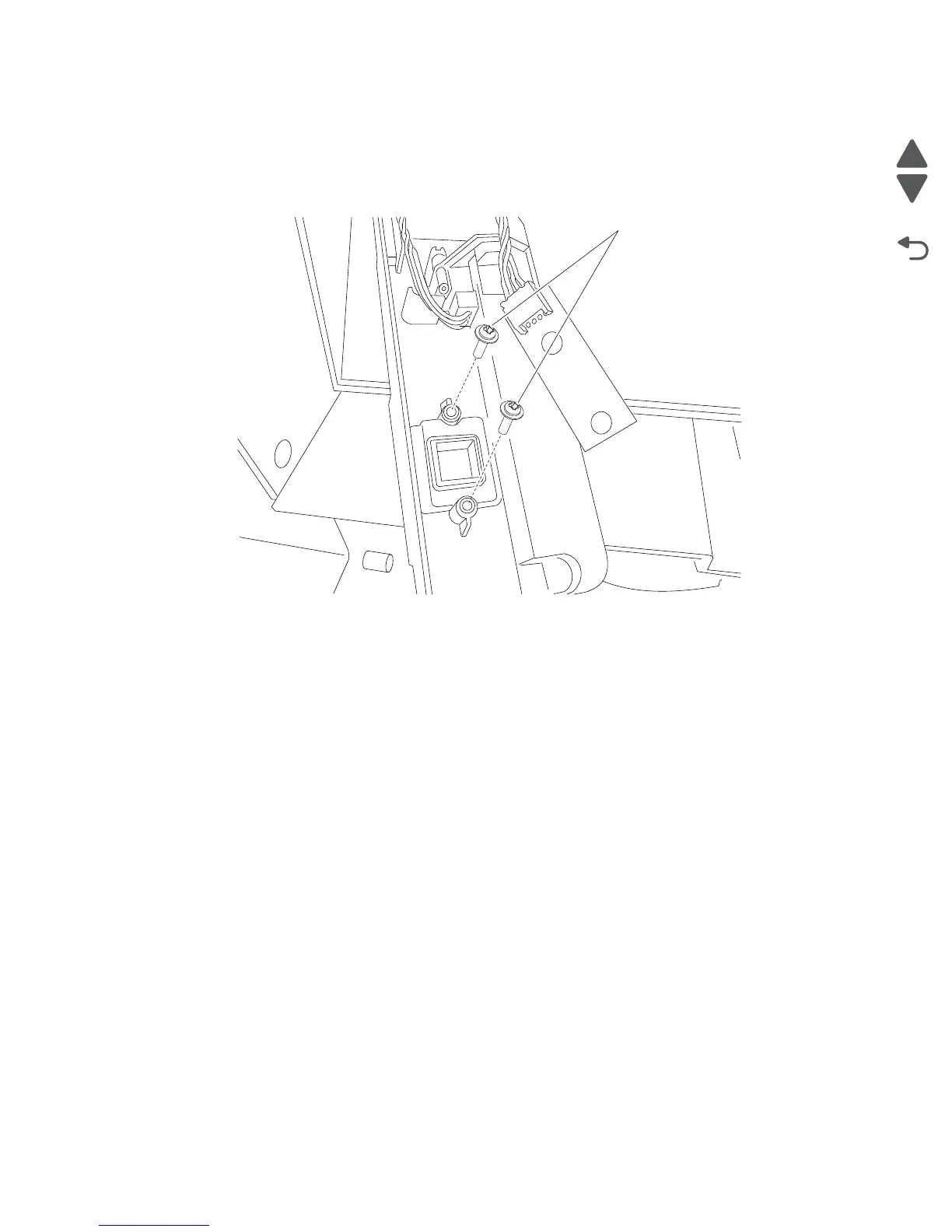

2. Remove the two screws (A) securing the LED to the cover.

3. Remove the LED and disconnect the harness.

4. Remove the LED clear lens.
