Scanner platen glass cover assembly removal (model X658)
1. Remove the ADF unit assembly. See “ADF unit assembly removal (model X658)” on page 4-80.
2. Remove the scanner cover, left. See “Scanner cover, left removal (model X658)” on page 4-132.
3. Remove the scanner cover, right. See “Scanner cover, right removal (model X658)” on page 4-133
4. Remove the scanner cover, front. See “Scanner cover, front removal (model X658)” on page 4-135.
Note: Remove the operator panel screw cover strip to access the 6th screw securing the platen glass cover
assembly.
Note: It is not necessary to remove the operator panel for platen glass removal.

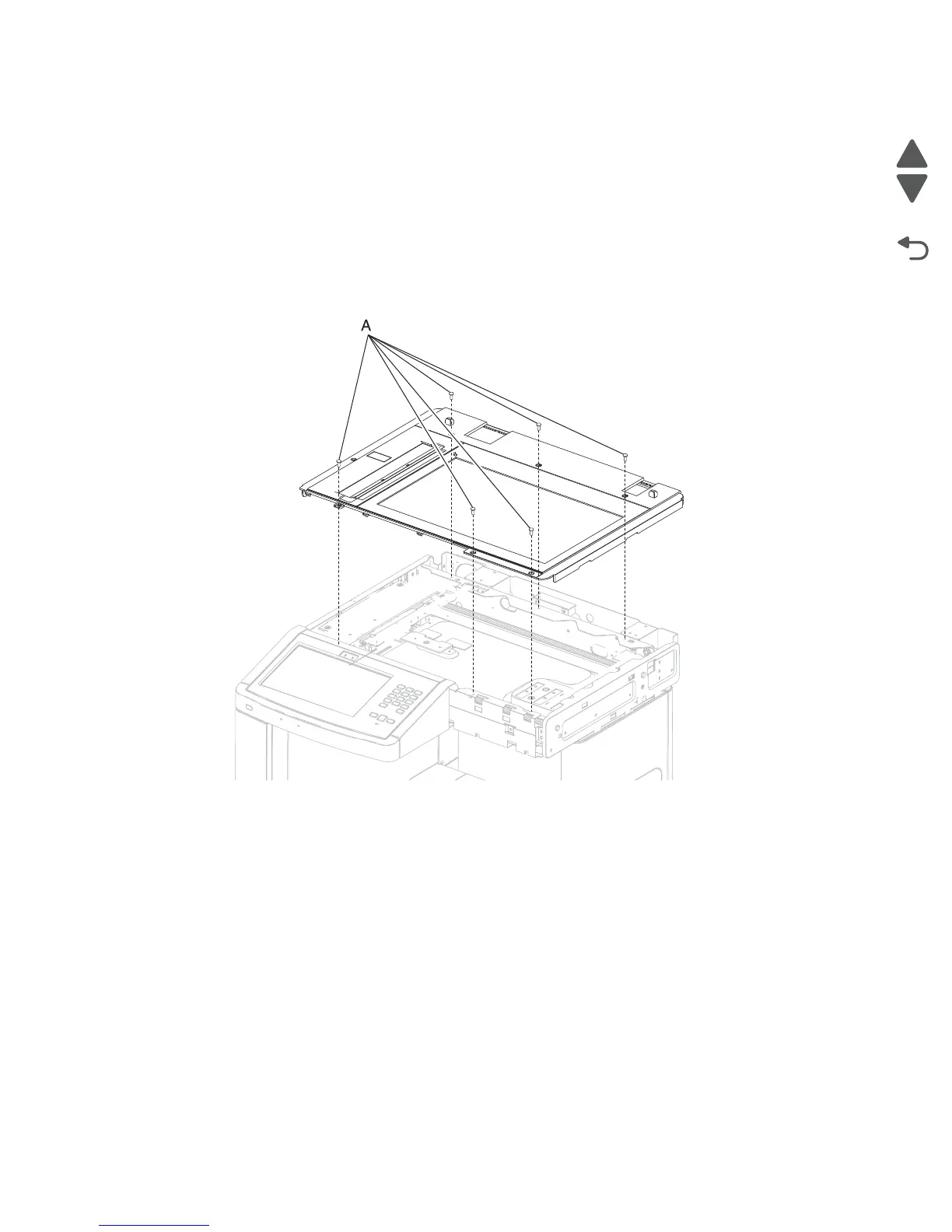

5. Remove six screws (A) securing the scanner platen glass cover to the assembly.
6. Lift and remove the scanner platen glass cover assembly.
