4-170 Service Manual
7462
High capacity input tray (HCIT) pick arm bracket assembly removal
Note: Carefully remove the base machine from the HCIT tray assembly before proceeding.
1. Remove the HCIT cover, left. See “High capacity input tray (HCIT) cover, left removal” on page 4-159.

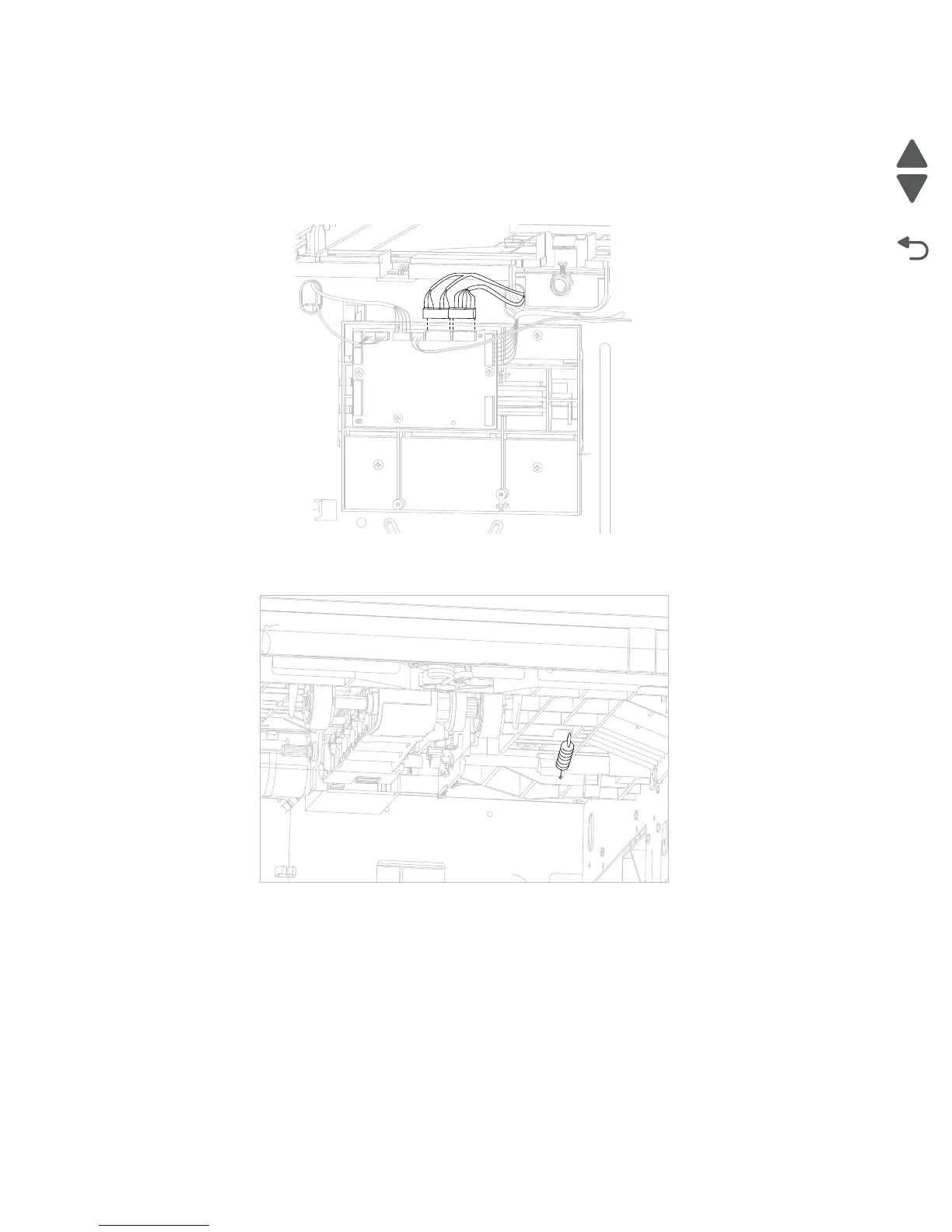

2. Remove the HCIT pick arm bracket assembly cable connectors from the HCIT controller card assembly.
Note: Remove the cable from the restraint, and observe the routing for reinstallation.
3. Remove the pick arm lift spring from the drawer.
To Next Page
