4-204 Service Manual

7462

Go Back

MFP stapler assembly tamper drive belt removal

1. Remove the tamper recoil spring. See “MFP stapler assembly tamper drive belt removal” on

page 4-204.

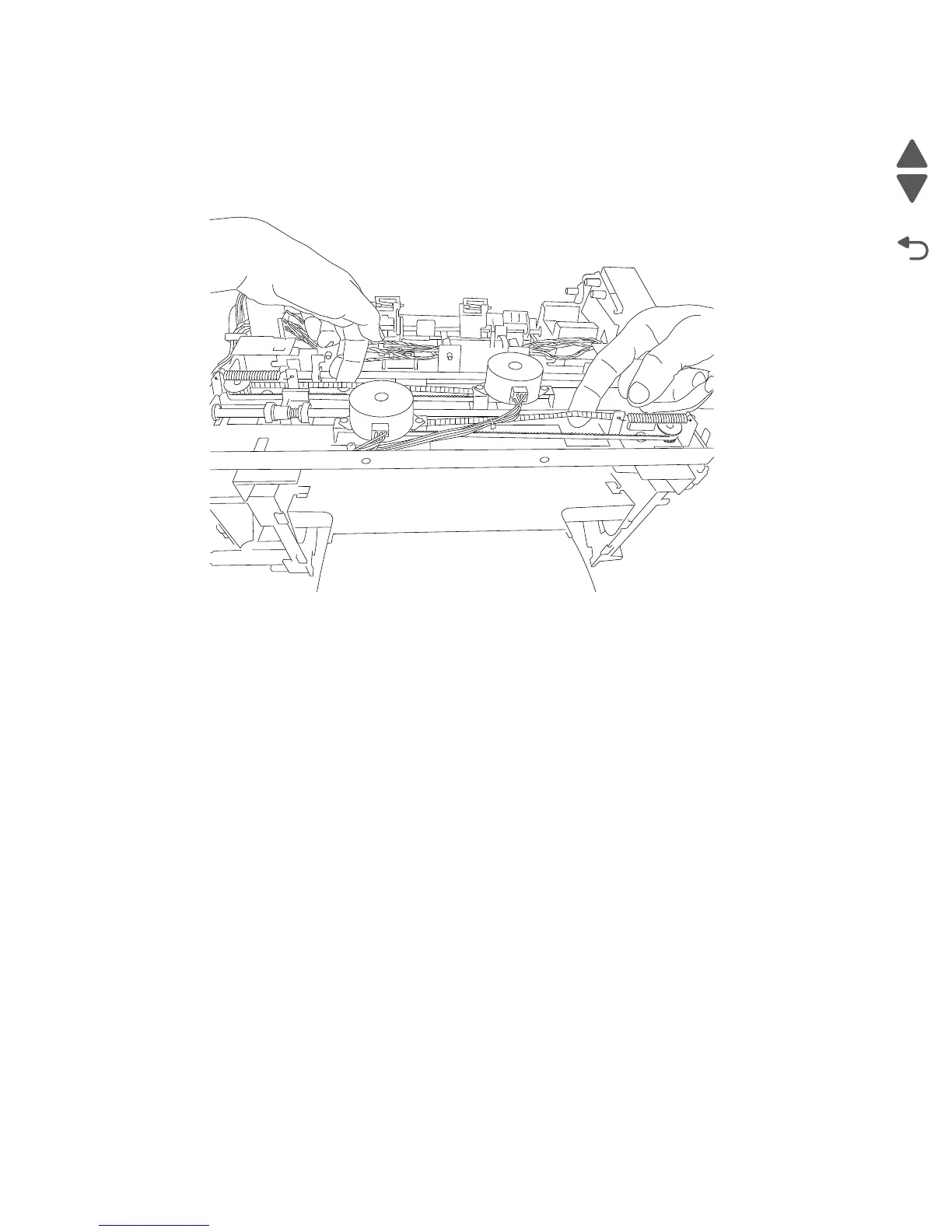

2. Pull the belt out the tamper belt holder and remove the belt from the pulley.
