Sensor (ADF 1st scan) removal
1. Remove the ADF turn guide. See “ADF turn guide removal” on page 4-67.

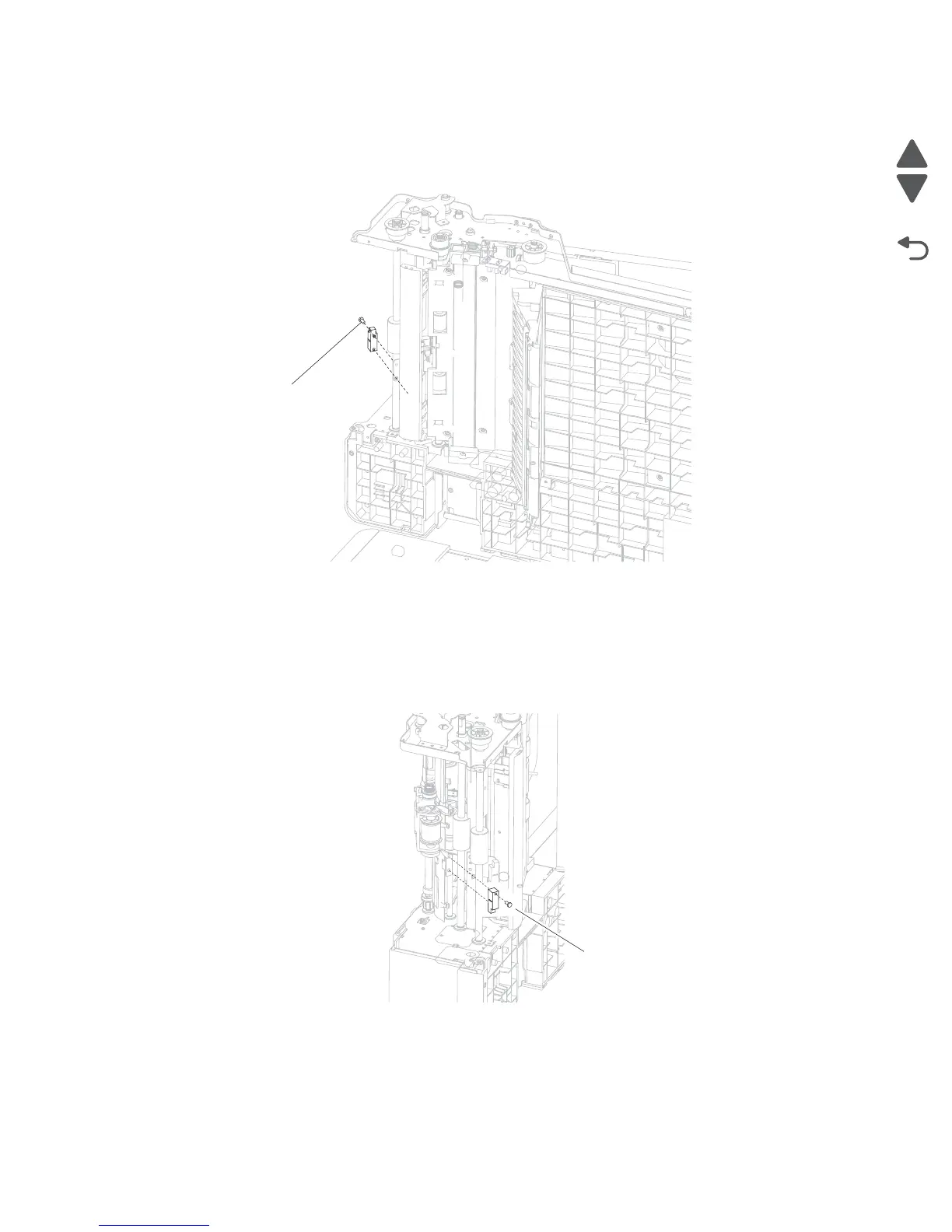

2. Remove the screw (A) securing the sensor (ADF first scan) to its bracket.
3. Remove the sensor (ADF first scan).
4. Remove the sensor (ADF first scan) harness.
Sensor (ADF sheet through) removal
1. Remove the ADF turn guide. See “ADF turn guide removal” on page 4-67.
2. Remove the screw (A) securing the sensor (ADF sheet through) to its bracket.
3. Remove the sensor (ADF sheet through).
4. Remove the sensor (ADF sheet through) harness.
A
A
