4-216 Service Manual
7462
Go Back
Previous
Next

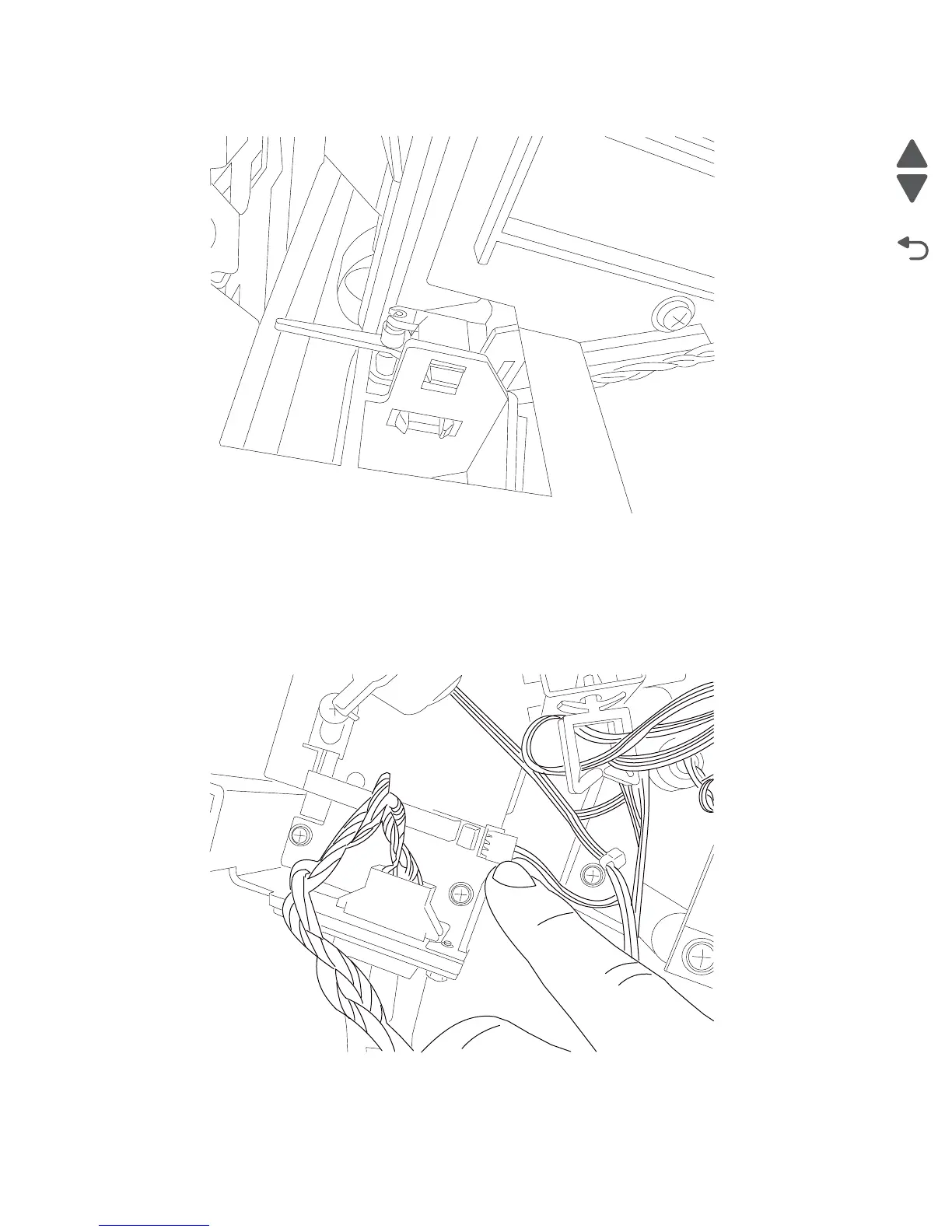

3. Using needlenose pliers, carefully grip the sensor and pull it out and disconnect the harness.
Replacement Notes: Using needlenose pliers, place the rear most tab in the sensor bracket first. Then push
on the rear face of the sensor until the other two tabs snap into place.
MFP stapler assembly sensor (deflector HP) removal
1. Remove the left cover. See “MFP stapler assembly left cover removal” on page 4-197.
2. Disconnect the harness to the sensor (deflector HP).
