Diagnostic aids 3-55

7462

Go Back

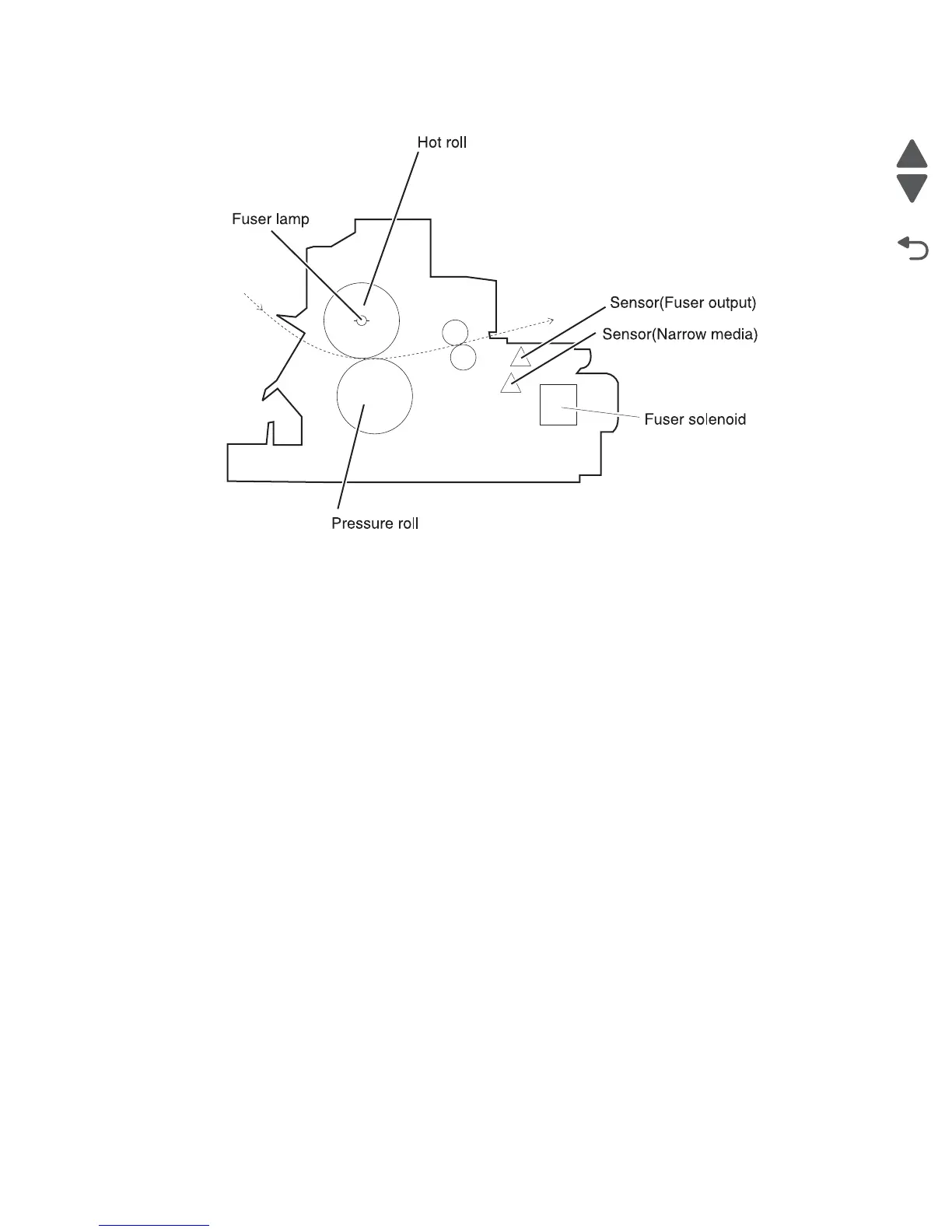

Fuser components

Heat roll

The heat roll is a hollow metal tube with a coated surface. This tube is heated by the inner heater lamp. The

heat is applied to the media passing between the heat roll and pressure roll, fusing the toner on the media.
