Diagnostic aids 3-93
7462
Adjusting skew

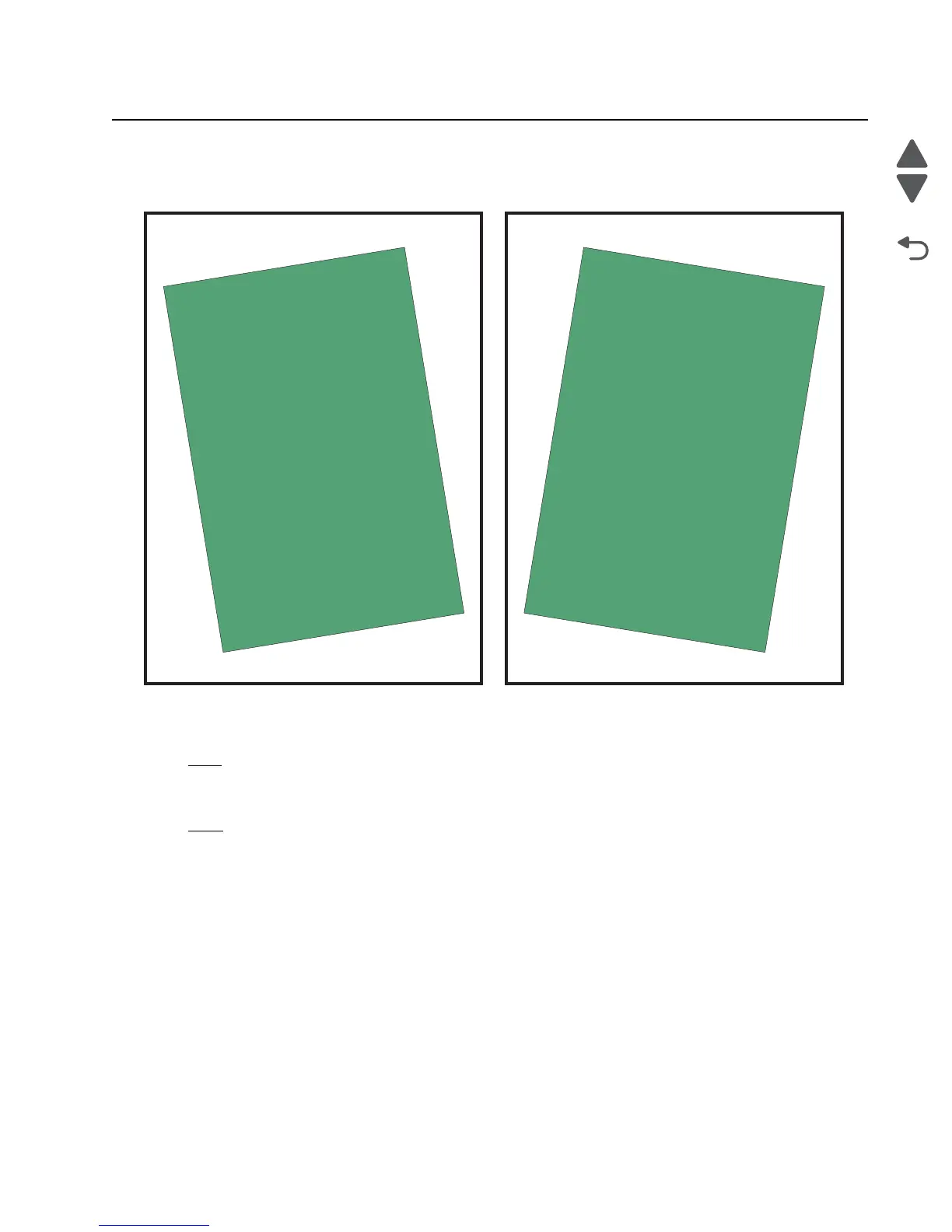

For flatbed scanner and ADF skew adjustment, refer to the examples below to identify if “negative” or “positive”
skew is present; this will help with determining the correct adjustment to be made.
Acceptable ADF and flatbed scanner specifications
Scan
Flatbed (LE, TE, left & right edges) = +/- 0.5% (or +/- 0.005mm/mm)
ADF simplex and duplex (LE, TE, left & right edges) = +/- 0.75%
Copy
Flatbed, ADF simplex and duplex (LE, TE, left & right edges) = +/- 0.75%
