Repair information 4-55
7462

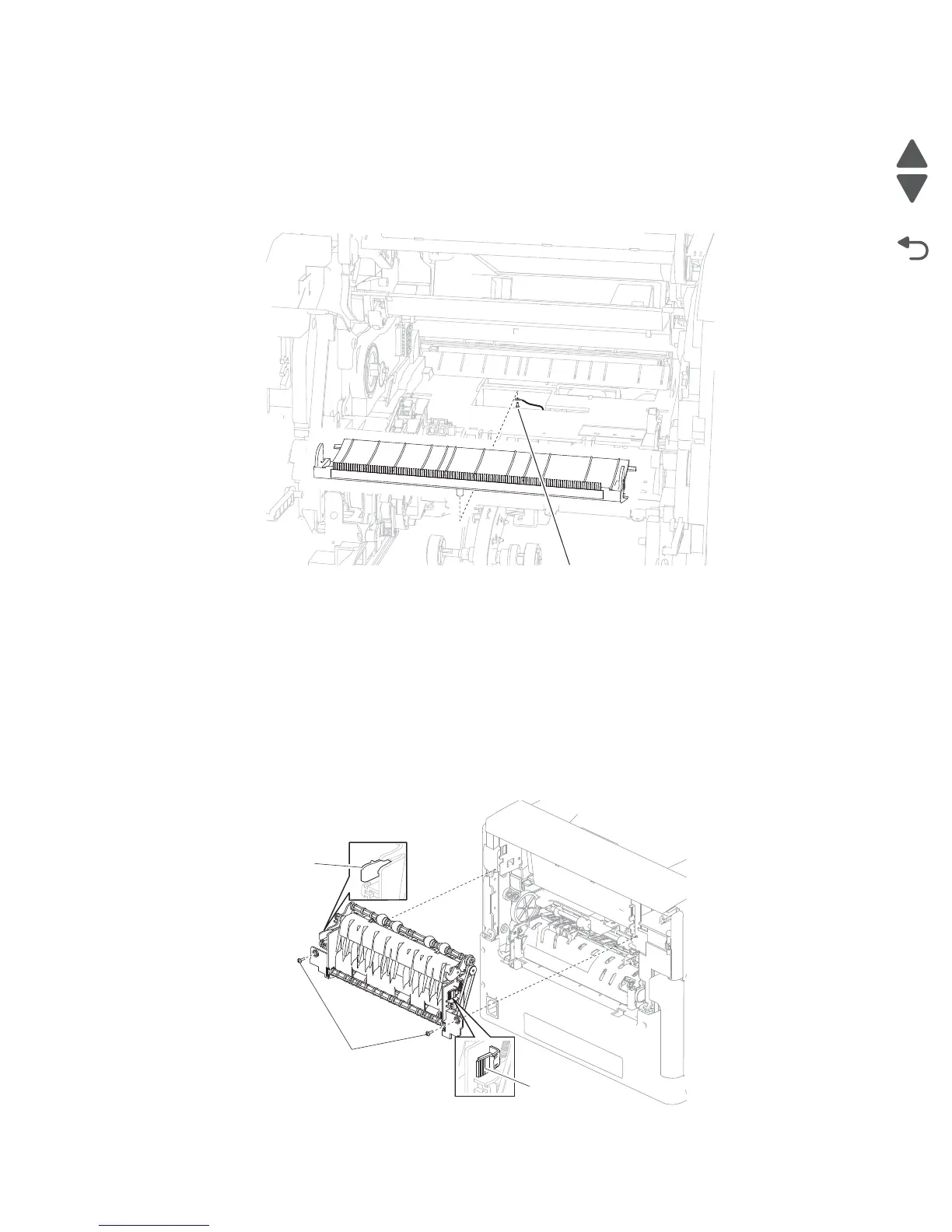

Transfer deflector removal
1. Remove the transfer roll assembly. See “Transfer roll assembly removal” on page 4-53.
2. Gently unsnap the transfer deflector from the machine.
3. Remove the transfer deflector.
4. Remove the screw (A) securing the ground wire to the transfer deflector.
5. Remove the ground wire.
Replacement Warning: When replacing the transfer deflector, ensure that the ground wire is properly
replaced.
Redrive assembly removal
1. Remove the door assembly, rear. See “Door assembly, rear removal” on page 4-35.
2. Open the fuser access door.
3. Remove the two screws (A) securing the redrive assembly to the machine.
4. Press the two tabs (B) to release the redrive assembly to the machine.
While pressing the two tabs (B), pull the redrive assembly from the machine.
