MFP stapler assembly sensor (stapler access door interlock) removal

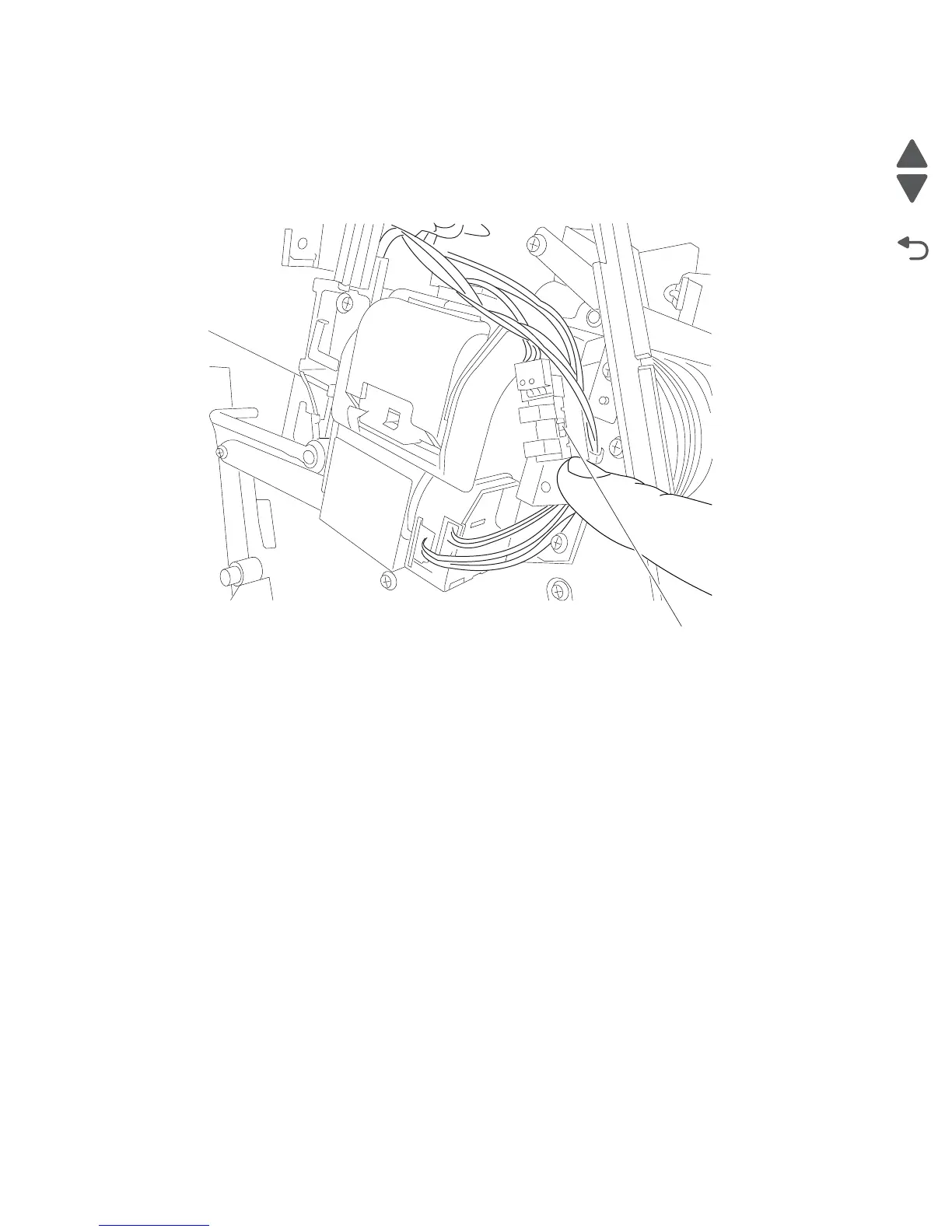

1. Remove the right cover. See “MFP stapler assembly right cover removal” on page 4-196.

2. Disconnect the harness to the sensor (stapler access door interlock).

3. Using your fingers, pinch tab (A) securing the sensor (stapler access door interlock) and remove.
