Repair information 4-213

7462

Go Back

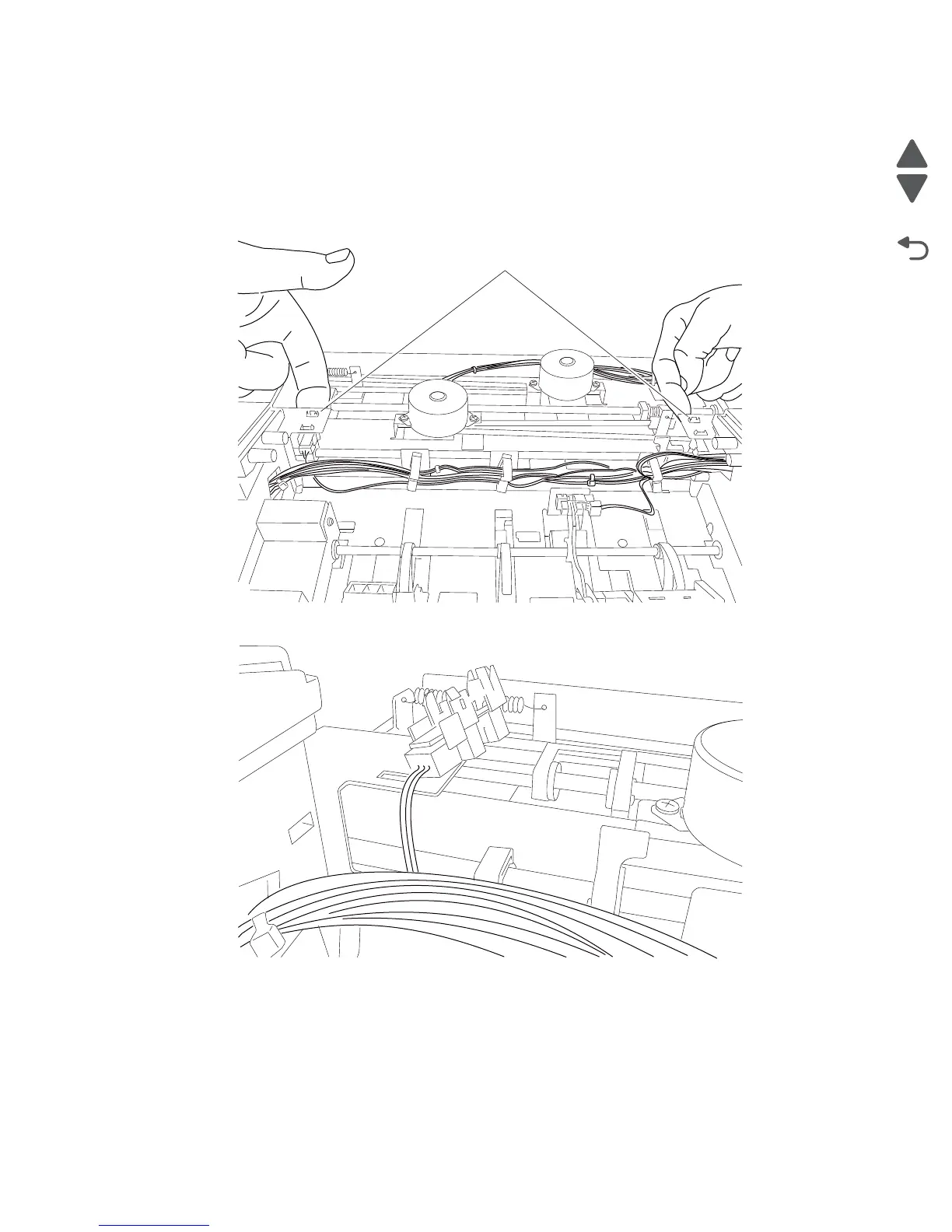

MFP stapler assembly sensor (tamper HP left and right) removal

1. Remove the top cover. See “MFP stapler assembly top cover removal” on page 4-198.

2. Disconnect the harness to the sensor (tamper HP left and right).

3. Using your fingers, pinch the tabs (A) securing the staple finisher sensor (tamper HP left and right) and

remove.
